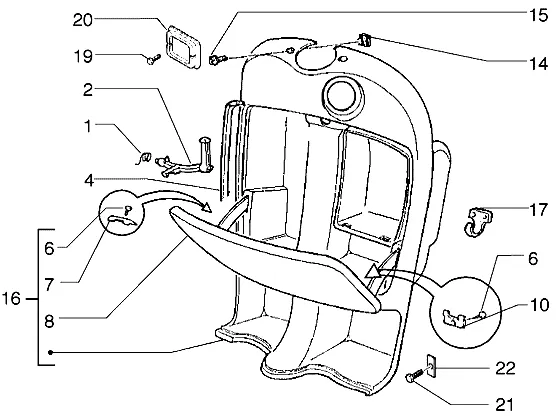

Exploded view — Front Glove Compartment

Products

1 Spring Available 257617

•

  Spring Piaggio Group · 257617 Available

  € 1,80

  Add to cart

2 Opening tab for glove compartment Available 295528

•

  Hooks Piaggio Group · 295528 Available

  € 13,78

  Add to cart

4 Gasket Available 297275

•

  Gasket Piaggio Group · 297275 Available

  € 12,43

  Add to cart

6 Screw Available 297498

•

  Sheet Metal Screw Piaggio Group · 297498 · Quantity needed: 4 Available

  € 0,99

  Add to cart

7 Square Available 252420

•

  Bracket Piaggio Group · 252420 Available

  € 4,94

  Add to cart

8 Flap 575494000D No longer available

• 575494000D Flap
  No longer available

10 Spring 259548 No longer available

• 259548 Spring Quantity needed: 2
  No longer available

14 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 · Quantity needed: 6 Available

  € 0,99

  Add to cart

15 Screw (4,2x19) Available 258249

•

  Sheet Metal Screw Piaggio Group · 258249 · Quantity needed: 6 Available

  € 0,99

  Add to cart

16 Front glove comp. 577035000D No longer available

• 577035000D Front glove comp.
  No longer available

17 Clip nuts Available 573057

•

  Sheet nut Piaggio Group · 573057 Available

  € 6,80

  Add to cart

19 Screw Available 259349

•

  Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 2 Available

  € 0,99

  Add to cart

20 Hook for bag Available 253469

•

  Luggage Hooks Piaggio Group · 253469 Available

  € 23,24

  Add to cart

21 Screw (M6x16) Available 575249

•

  Screw M6 Piaggio Group · 575249 · Quantity needed: 2 Available

  € 0,99

  Add to cart

22 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart
