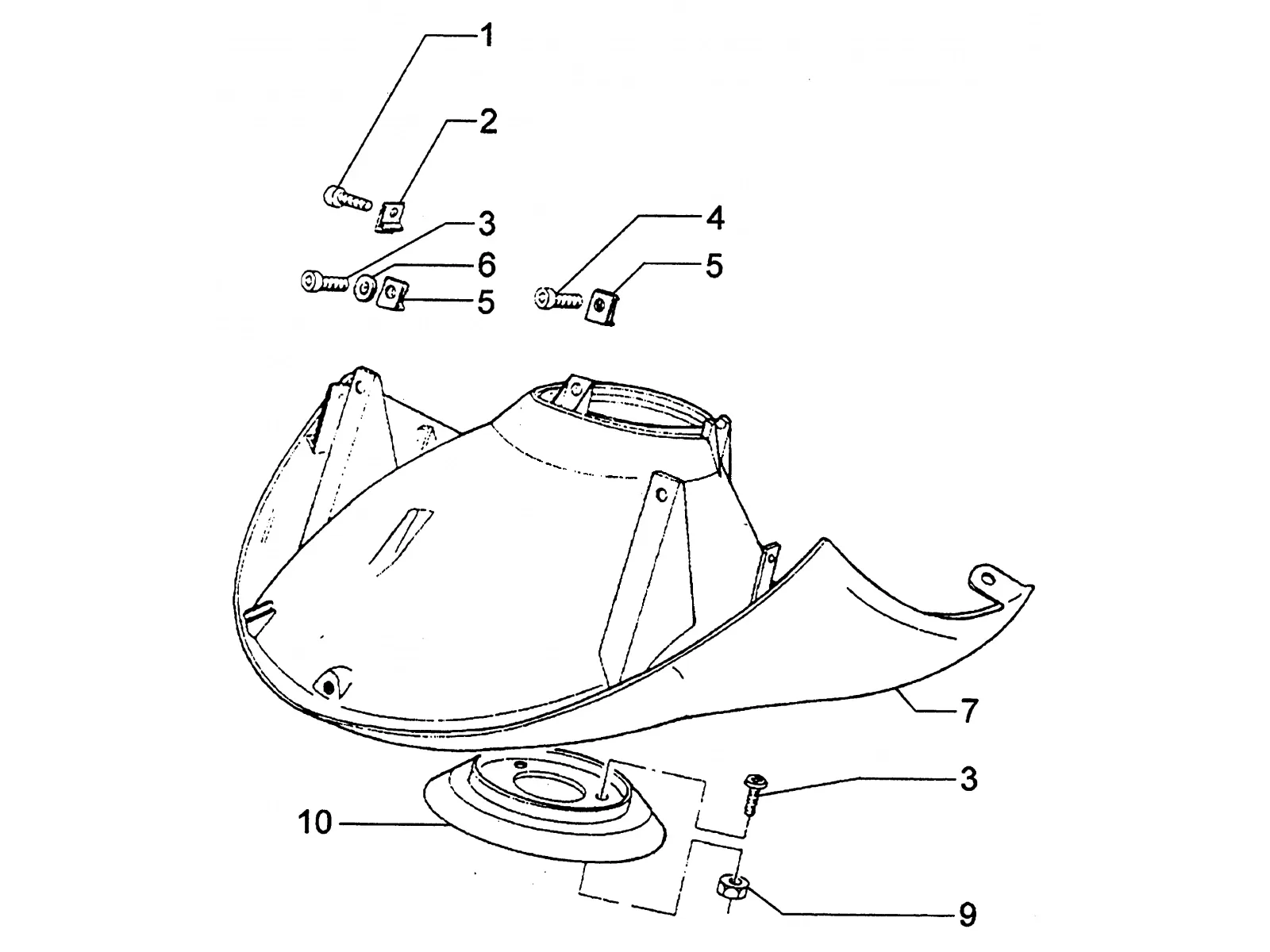

Exploded view — Front Mudguard

Products

1 Screw (4,2x19) Available 258249

•

  Sheet Metal Screw Piaggio Group · 258249 · Quantity needed: 6 Available

  € 0,99

  Add to cart

2 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 Available

  € 0,99

  Add to cart

3 Screw (M6x22) Available CM179302

•

  Screw M6x22 Piaggio Group · CM179302 · Quantity needed: 4 Available

  € 1,48

  Add to cart

4 Screw (6 mm) Available 257404

•

  Screw Piaggio Group · 257404 Available

  € 1,45

  Add to cart

5 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 3 Available

  € 2,04

  Add to cart

6 Washer Available 179575

•

  Washer Piaggio Group · 179575 · Quantity needed: 4 Available

  € 1,52

  Add to cart

7 LOWER SHIELD HEXAGON P.224 5770530038 No longer available

• 5770530038 LOWER SHIELD HEXAGON P.224
  No longer available
• 577053000D LOWER SHIELD HEXAGON 882 ->
  No longer available
• 57705300D1 LOWER SHIELD HEXAGON P.251
  No longer available
• 574312000G LOWER SHIELD
  No longer available
• 5743120037 Shield
  No longer available
• 577053000A LOWER SHIELD HEXAGON
  No longer available

9 Nut Available 288245

•

  Collar nut M6 Piaggio Group · 288245 · Quantity needed: 3 Available

  € 0,99

  Add to cart

10 Disc 563676 No longer available

• 563676 Disc
  No longer available
