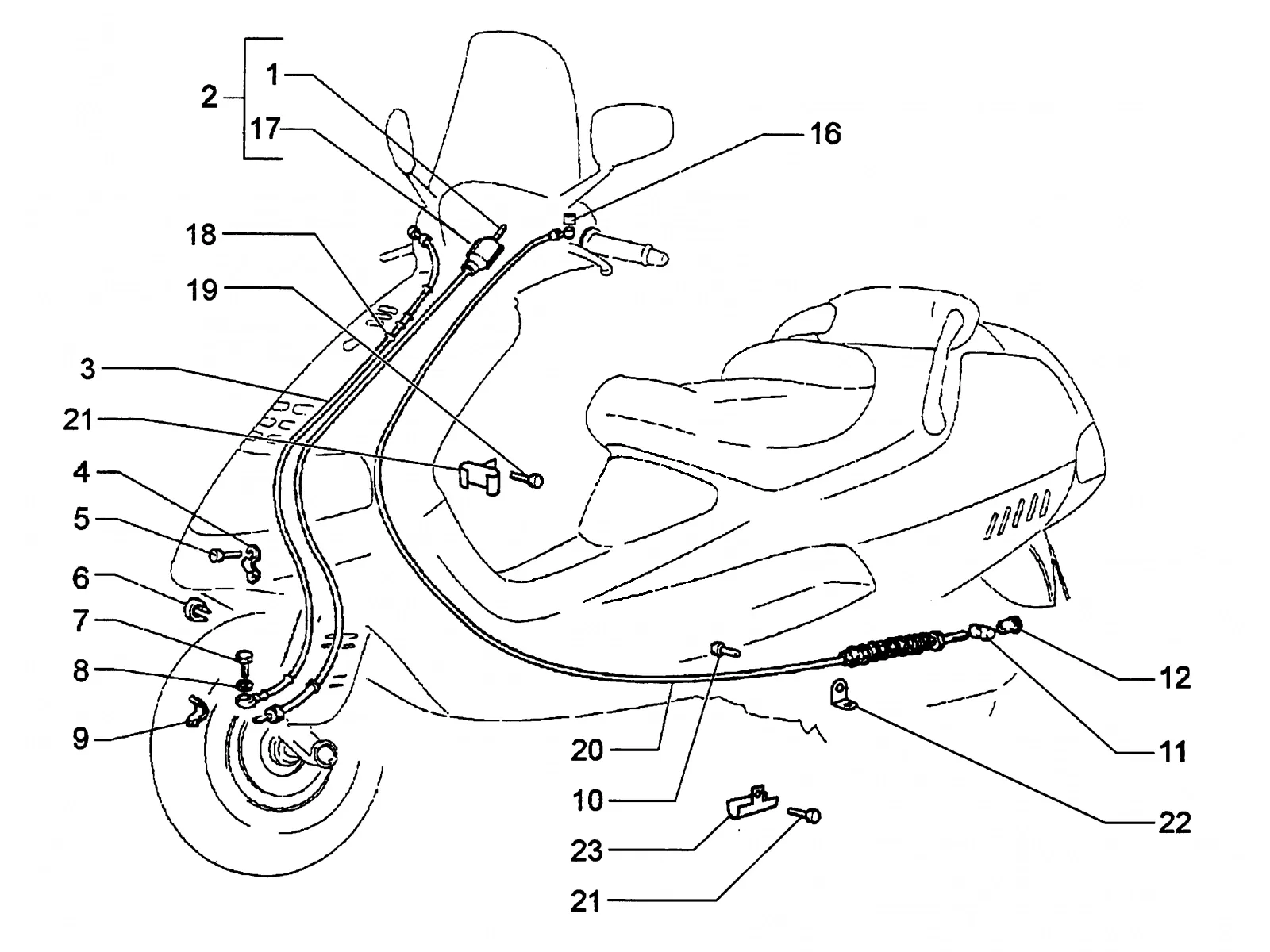

Exploded view — Transmissions

Products

1 Wire 561806 No longer available

• 561806 Wire
  No longer available

2 Transmission 561279 No longer available

• 561279 Transmission
  No longer available

3 Piping Available 274922

•

  Brake line, front Piaggio Group · 274922 Available

  € 121,65

  Add to cart

4 Plate 272734 No longer available

• 272734 Plate
  No longer available

5 Screw Available 270793

•

  Screw 3,8x16 mm Piaggio Group · 270793 Available

  € 0,99

  Add to cart

6 Strap 272735 No longer available

• 272735 Strap
  No longer available

7 Oil pipe screw M10x18 Available 265451

•

  Hollow screw M10x18 Piaggio Group · 265451 Available

  € 4,91

  Add to cart

8 Washer gasket Available 127927

•

  Copper Flange Gasket 10x16x1 mm Piaggio Group · 127927 · Quantity needed: 2 Available

  € 1,31

  Add to cart

9 Spring Available 191002

•

  Clip Piaggio Group · 191002 Available

  € 1,31

  Add to cart

10 TRANSMISSION 564107 No longer available

• 564107 TRANSMISSION
  No longer available

11 Pin 563979 No longer available

• 563979 Pin
  No longer available

12 Registro freno posteriore Available 270310

•

  Adjustment Screw Piaggio Group · 270310 Available

  € 6,30

  Add to cart

13 Screw (M6x22) Available CM179302

•

  Screw M6x22 Piaggio Group · CM179302 Available

  € 1,48

  Add to cart

14 Spring 433084 No longer available

• 433084 Spring
  No longer available

15 Hose clamp Available 257134

•

  Cable Ties length: 27,7cm Piaggio Group · 257134 Available

  € 0,99

  Add to cart

16 Bush Available 266040

•

  Sleeve Piaggio Group · 266040 Available

  € 1,45

  Add to cart

17 Ring nut 401856 No longer available

• 401856 Ring nut
  No longer available

18 Damper Available 560136

•

  Cable Guide Piaggio Group · 560136 Available

  € 2,77

  Add to cart

19 Clamp 495408 No longer available

• 495408 Clamp
  No longer available

20 Screw 495409 No longer available

• 495409 Screw
  No longer available

21 Screw 495327 No longer available

• 495327 Screw Quantity needed: 2
  No longer available

22 Plate 495406 No longer available

• 495406 Plate
  No longer available

23 Clamp 495407 No longer available

• 495407 Clamp
  No longer available
