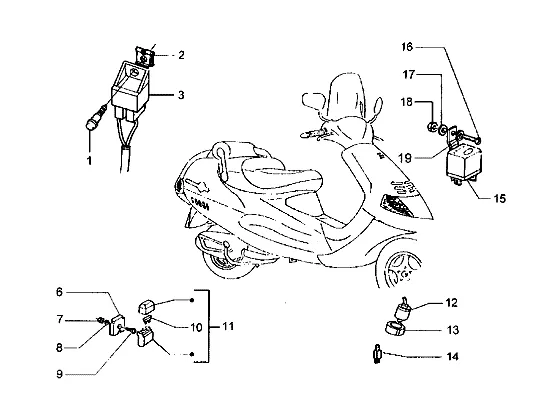

Exploded view — Electrical Devices

Products

1 Screw Available 259349

•

  Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

2 Clip nuts Available CM017408

•

  Sheet nut Piaggio Group · CM017408 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

3 Relay - starter (12V 30A) Available 58246R

•

  Ignition Relay 12 V, 30 A Piaggio Group · 58246R · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 9,60

  Add to cart

6 Bracket Available 290405

•

  Bracket Piaggio Group · 290405 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,79

  Add to cart

7 Nut Available 020003

• • Enjoy 2015


  Standard nut M3 Piaggio Group · 020003 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

8 Washer (spring) Available 006976

• • Braking system with pressure regulator valve 597687


  Snap-in Ring 12x6,4x0,5 mm Piaggio Group · 006976 Available · Shipped in 3–5 working days

  € 1,79

  Add to cart

9 Screw Available 031088

• • USA version


  Screw M6x16 Piaggio Group · 031088 Available · Shipped in 3–5 working days

  € 1,51

  Add to cart

10 Fuse (10A) Available 292507

•

  Fuse 10 A Piaggio Group · 292507 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,86

  Add to cart
•

  Fuse 25 A Piaggio Group · 291570 Available · Shipped in 3–5 working days

  € 2,26

  Add to cart

11 2 - Fuse holder Available 293347

•

  Fuse Box Piaggio Group · 293347 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 12,78

  Add to cart

12 Flasher relay Available 1E000357R

•

  Indicator Relay Piaggio Group · 1E000357R Available · Shipped in 3–5 working days

  € 60,74

  Add to cart

13 Elastic support Available 291017

•

  Bracket for flasher unit, elastic Piaggio Group · 291017 Available · Shipped in 3–5 working days

  € 14,65

  Add to cart

14 Diode 294163 No longer available

• 294163 Diode
  No longer available

15 Relay - starter Available 58115R

• • Carburettor version (C364M)


  Starting Relay 12 V, 80 A Piaggio Group · 58115R Available · Shipped in 3–5 working days

  € 24,91

  Add to cart

  Alternatives from other brands



  Start Relay Vespa GTS 300 IE Athena · S410480402002 Backorder · Shipped in 2–5 weeks

  € 12,10

  Add to cart

16 Screw Available 272836

• • Country: United States of America


  Screw M6x16 Piaggio Group · 272836 Available · Shipped in 3–5 working days

  € 1,39

  Add to cart

17 Washer Available 003056

• • Enjoy 2015


  Washer 6,4x12x1 mm Piaggio Group · 003056 Available · Shipped in 3–5 working days

  € 1,84

  Add to cart

18 Nut Available 709116

• • Country: England
  • Country: Indonesia


  Standard nut Piaggio Group · 709116 Available · Shipped in 3–5 working days

  € 1,82

  Add to cart

19 Washer Available 179575

•

  Washer Piaggio Group · 179575 Available · Shipped in 3–5 working days

  € 1,52

  Add to cart
