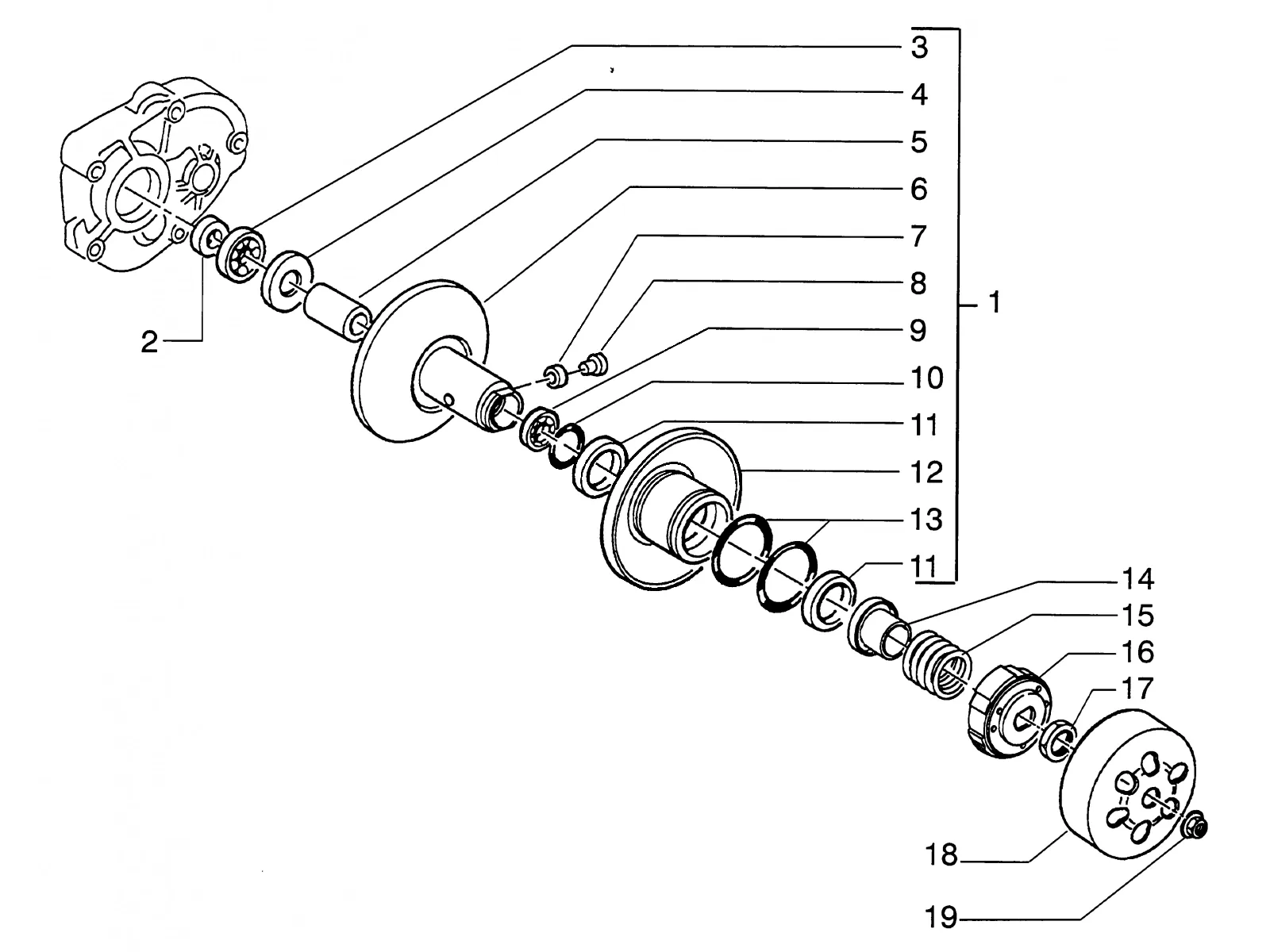

Exploded view — Fixed Half-pulley

Products

1 Secondary pulley 4805775 No longer available

• 4805775 Secondary pulley
  No longer available

2 Spacer 435993 No longer available

• 435993 Spacer
  No longer available

3 Bearing 285007 No longer available

• 285007 Bearing
  No longer available

4 Cup 289184 No longer available

• 289184 Cup
  No longer available

5 Spacer 286183 No longer available

• 286183 Spacer
  No longer available

6 Sec.fixed semi-sheave bush 4780745 No longer available

• 4780745 Sec.fixed semi-sheave bush
  No longer available

7 Guide roller 285358 No longer available

• 285358 Guide roller Quantity needed: 3
  No longer available

8 PIN 285359 No longer available

• 285359 PIN Quantity needed: 3
  No longer available

10 Gasket Available 289386

•

  Gasket Piaggio Group · 289386 Available

  € 0,99

  Add to cart

11 Oil seal Available 431089

•

  Oil seal Piaggio Group · 431089 · Quantity needed: 2 Available

  € 9,66

  Add to cart

12 PULLEY HALF 478072 No longer available

• 478072 PULLEY HALF
  No longer available

13 O-Ring Available 430585

•

  Oil seal Piaggio Group · 430585 · Quantity needed: 2 Available

  € 1,32

  Add to cart

14 Spring seat Backorder 435317

•

  Spring Mount Piaggio Group · 435317 Backorder

  € 11,28

  Add to cart

15 Spring 482132 No longer available

• 482132 Spring
  No longer available

16 Clutch assy 483833 No longer available

• 483833 Clutch assy
  No longer available

17 Nut Available 285017

•

  Standard nut Piaggio Group · 285017 Available

  € 7,64

  Add to cart

18 Clutch drum 82503R No longer available

• 82503R Clutch drum
  No longer available

19 Flanged nut M10x1,25 Available 289519

•

  Flywheel nut M10x1.25 Piaggio Group · 289519 Available

  € 1,52

  Add to cart
