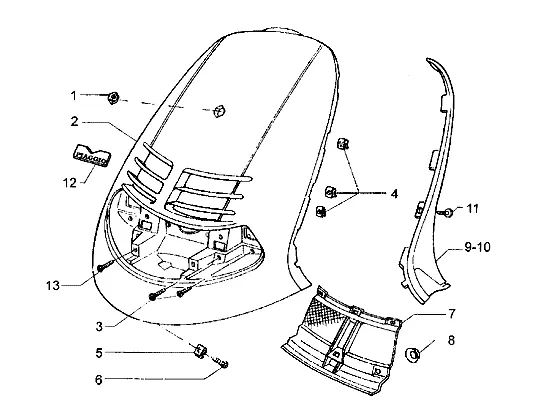

Exploded view — Shieldren-mask

Products

1 Emblem - Decal (Piaggio - clip on) Available 295486

•

  Emblem, motive: Piaggio, blue, silver, Ø 32,50 mm, for plugging in Piaggio Group · 295486 Available

  € 4,38

  Add to cart

2 Shield 8205005037 No longer available

• 8205005037 Shield
  No longer available
• 8205005 SHIELD
  No longer available
• 8205005090 SHIELD
  No longer available
• 8205005060 SHIELD
  No longer available
• 8205005038 SHIELD
  No longer available

3 Screw (M6x16) Available 575249

•

  Screw M6 Piaggio Group · 575249 · Quantity needed: 6 Available

  € 0,99

  Add to cart

4 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 6 Available

  € 2,04

  Add to cart

5 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 · Quantity needed: 5 Available

  € 0,99

  Add to cart

6 Screw (4,2x19) Available 258249

•

  Sheet Metal Screw Piaggio Group · 258249 · Quantity needed: 5 Available

  € 0,99

  Add to cart

7 Grid 562398 No longer available

• 562398 Grid
  No longer available

8 Plate Available 573580

•

  Sheet nut Piaggio Group · 573580 · Quantity needed: 6 Available

  € 0,99

  Add to cart

9 Deflector 562719000C No longer available

• 562719000C Deflector
  No longer available

10 Deflector Available 562721000C

•

  Cover, right Piaggio Group · 562721000C Available

  € 39,47

  Add to cart

11 Screw Available 297498

•

  Sheet Metal Screw Piaggio Group · 297498 · Quantity needed: 2 Available

  € 0,99

  Add to cart

12 Sticker - Decal Available 6214540038

•

  Lettering, motive: Piaggio, grey Piaggio Group · 6214540038 Available

  € 10,04

  Add to cart

13 Screw (M6x22) Available CM179302

•

  Screw M6x22 Piaggio Group · CM179302 · Quantity needed: 2 Available

  € 1,48

  Add to cart
