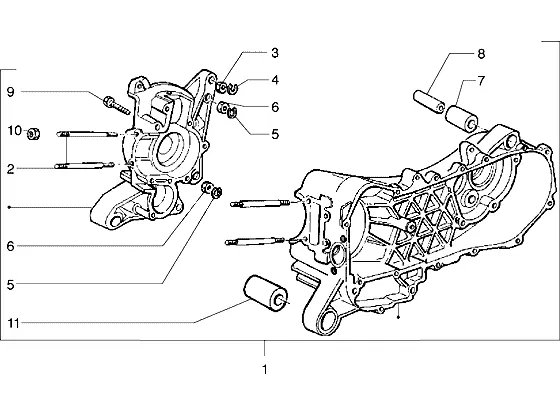

Exploded view — Crankcase

Products

1 Crank-case 8250135 No longer available

• 8250135 Crank-case
  No longer available

2 Stud bolt 436249 No longer available

• 436249 Stud bolt Quantity needed: 4
  No longer available

3 Nut Available 020006

•

  Standard nut M6 Piaggio Group · 020006 Available

  € 1,52

  Add to cart

4 Seeger Available 287223

•

  Toothed Lock Washer Piaggio Group · 287223 Available

  € 0,99

  Add to cart

5 Seeger Available 113533

•

  Toothed Lock Washer Piaggio Group · 113533 · Quantity needed: 2 Available

  € 2,35

  Add to cart

6 Nut Available 020008

•

  Standard nut M8 Piaggio Group · 020008 · Quantity needed: 2 Available

  € 1,48

  Add to cart

7 Shock absorber connection silent block Available 267823

•

  Silentblock Piaggio Group · 267823 Available

  € 4,20

  Add to cart

8 Spacer 563586 No longer available

• 563586 Spacer
  No longer available

9 Screw Available B016425

•

  Flanged Screw M6x60 Piaggio Group · B016425 · Quantity needed: 8 Available

  € 1,82

  Add to cart

10 Nut (Flanged) 434078 No longer available

• 434078 Nut (Flanged) Quantity needed: 4
  No longer available

11 Silentblock - engine mount Available 266773

•

  Silentblock Piaggio Group · 266773 · Quantity needed: 2 Available

  € 12,37

  Add to cart
