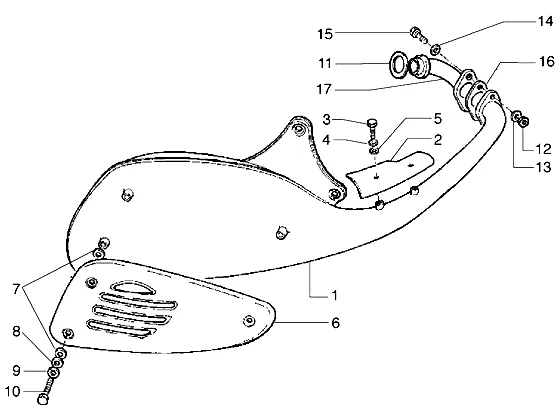

Exploded view — Silencer

Products

1 Exhaust 831869 No longer available

• 831869 Exhaust
  No longer available

2 Silencer protector (Small) 480401 No longer available

• 480401 Silencer protector (Small)
  No longer available

3 Screw Available 433800

•

  Screw M5x10 Piaggio Group · 433800 · Quantity needed: 2 Available

  € 0,99

  Add to cart

4 Washer (spring) Available 016405

•

  Spring Washer Piaggio Group · 016405 · Quantity needed: 2 Available

  € 1,84

  Add to cart

5 Washer Available 006965

•

  Washer Piaggio Group · 006965 · Quantity needed: 2 Available

  € 0,99

  Add to cart

6 Silencer protector Available 8454655

•

  Heat Shield Piaggio Group · 8454655 Available

  € 43,71

  Add to cart

7 Spacer Available 479882

•

  Spacer disc Piaggio Group · 479882 · Quantity needed: 6 Available

  € 1,45

  Add to cart

8 Washer (spring) Available 097733

•

  Shim 5,3x14x1 mm Piaggio Group · 097733 · Quantity needed: 3 Available

  € 3,22

  Add to cart

10 Screw Available 430264

•

  Oval Head Screw M5x10 Piaggio Group · 430264 · Quantity needed: 3 Available

  € 0,99

  Add to cart

11 Exhaust gasket Available 434716

•

  Exhaust Gasket Piaggio Group · 434716 Available

  € 7,21

  Add to cart

12 Nut 436501 No longer available

• 436501 Nut Quantity needed: 2
  No longer available

13 Washer Available 016406

•

  Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 2 Available

  € 1,79

  Add to cart

14 Washer Available 709003

•

  Washer Piaggio Group · 709003 · Quantity needed: 2 Available

  € 0,99

  Add to cart

15 Screw 436502 No longer available

• 436502 Screw Quantity needed: 2
  No longer available

16 Exhaust gasket 259198 No longer available

• 259198 Exhaust gasket
  No longer available

17 Exhaust pipe 479172 No longer available

• 479172 Exhaust pipe
  No longer available
