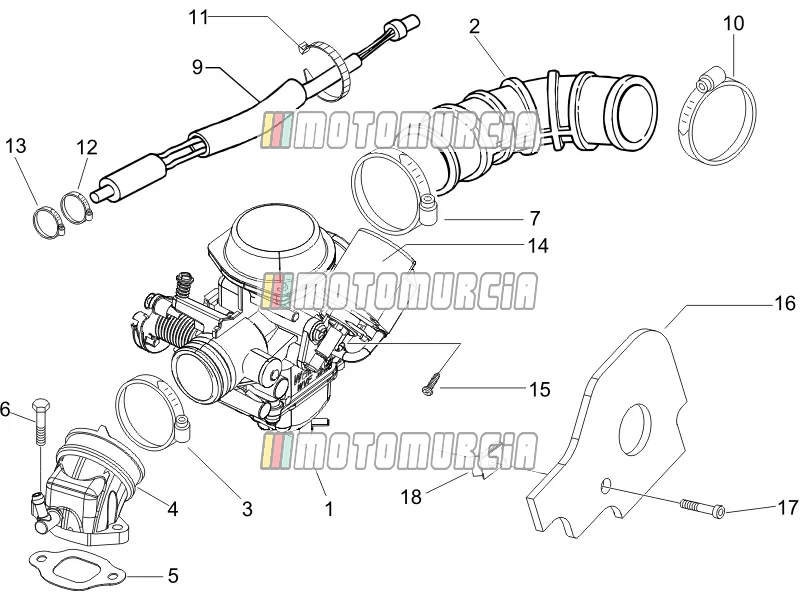

Exploded view — Carburettor, Assembly - Union Pipe

Products

1 Carburettor (CVEK27 2707) Backorder CM156010

•

  Carburettor Keihin CVEK27-2707 Piaggio Group · CM156010 Backorder · Shipped in 2–4 weeks

  € 513,12

  Add to cart
• CM153205 Carburettor keihin
  No longer available

2 Air bellow Available 829001

•

  Intake Manifold Piaggio Group · 829001 Available · Shipped in 3–5 working days

  € 30,31

  Add to cart

4 Intake Manifold Available 849465

•

  Intake manifold Piaggio Group · 849465 Available · Shipped in 3–5 working days

  € 28,44

  Add to cart

5 Intake manifold Gasket Available 871167

•

  Gasket Piaggio Group · 871167 Available · Shipped in 3–5 working days

  € 1,73

  Add to cart

6 Screw (M6x22) Available 1A000352

• • Country: Taiwan


  Screw M6x22 Piaggio Group · 1A000352 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 3,71

  Add to cart

7 Clamp Available 1A000833

•

  Clamp Piaggio Group · 1A000833 Available · Shipped in 3–5 working days

  € 10,74

  Add to cart

9 Resistor Module Available 82961R6

•

  Resistor Piaggio Group · 82961R6 Available · Shipped in 3–5 working days

  € 33,64

  Add to cart

11 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available · Shipped in 3–5 working days

  € 1,43

  Add to cart

12 Clamp Available CM002903

•

  Clamp Piaggio Group · CM002903 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

13 Clamp Available CM002902

•

  Clamp Piaggio Group · CM002902 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

15 Screw Available 018508

•

  Screw Piaggio Group · 018508 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,29

  Add to cart

17 Screw (4,2x19) Available 258249

•

  Sheet Metal Screw Piaggio Group · 258249 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

18 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart
