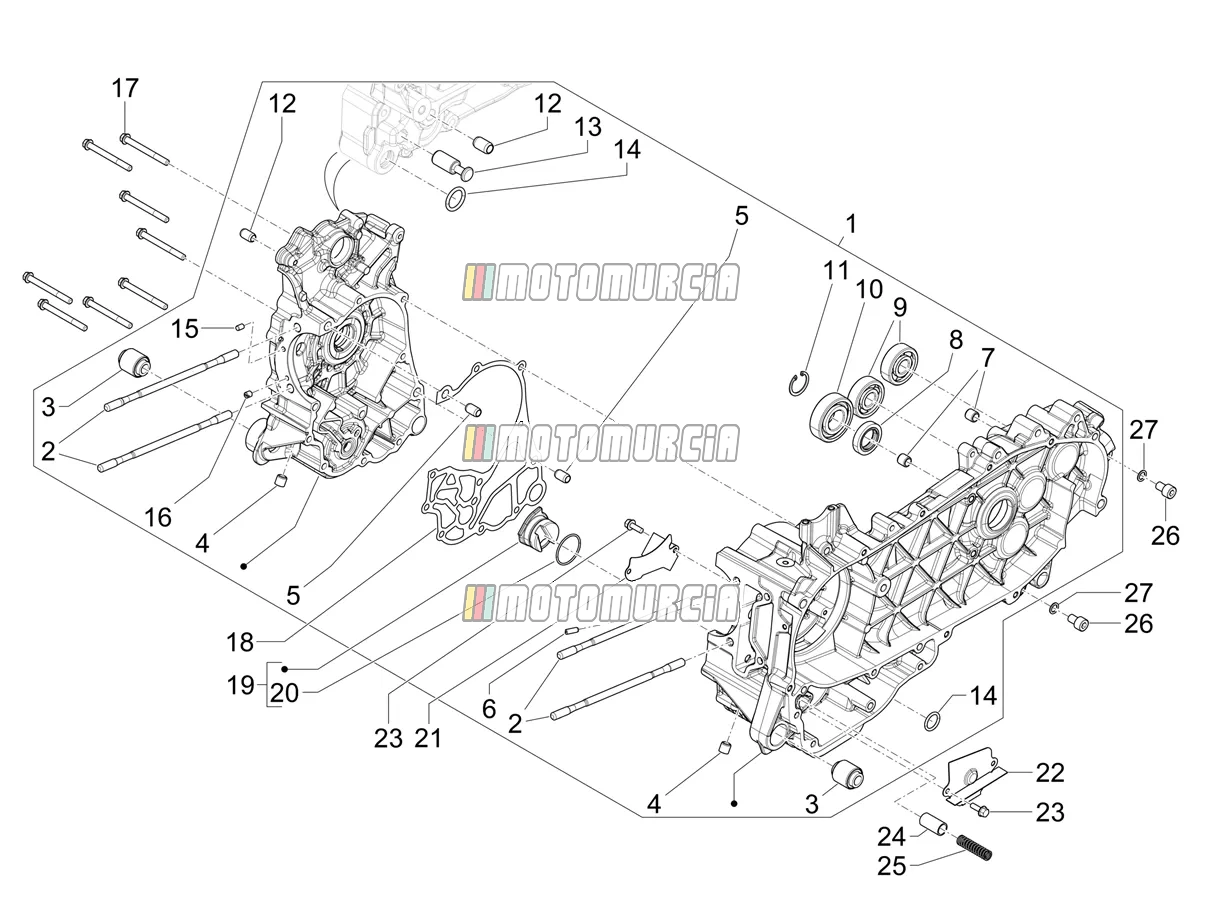

Exploded view — Crankcase

‹ Back to model
Piaggio Liberty 125 i-get E5+ (EU) 2023 Piaggio Liberty 125 i-get E5+ (EU) 2023
Crankcase

Products

1 CARTER 2? CAT Backorder CM34630402
  • CARTER 2? CAT Piaggio Group · CM34630402 Backorder
    € 539,09
  • CARTER 1? CAT Piaggio Group · CM34630401 Backorder
    € 539,09
2 Stud bolt Available 1A001406
  • Stud Screw Piaggio Group · 1A001406 · Quantity needed: 4 Available
    € 6,01
3 Silentblock - engine mount Available 1A008919R
  • Buffer Piaggio Group · 1A008919R · Quantity needed: 2 Available
    € 9,58
4 Expansion plug Available B015230
  • Adapter Sleeve Piaggio Group · B015230 · Quantity needed: 2 Available
    € 2,83
5 Dowel pin Available B015956
6 Calibrated nozzle Available 880706
  • Jet Piaggio Group · 880706 Available
    € 10,20
7 Dowel pin Available B015957
8 Sealing ring 22x35x7 Available 1A005834
9 Radial bearing 15x42x13 Available 83026R
  • Radial bearing Piaggio Group · 83026R · Quantity needed: 2 Available
    € 5,94
10 Radial bearing 20x50x14 Available 83027R
11 Seeger Available B015959
12 Dowel pin Available B015956
13 Springs fixing pin Available B015436
  • Bolts Piaggio Group · B015436 Available
    € 3,23
14 O-Ring Available 273754
  • O-Ring Piaggio Group · 273754 · Quantity needed: 2 Available
    € 0,99
15 Dowel pin Available 484993
16 Nozzle Available B018059
17 Screw Available B016425
18 Gasket - crankcase Available 875111
19 Filter door insert Available B015430
  • Lid Piaggio Group · B015430 Available
    € 7,13
20 O-Ring Available 431065
  • Oil seal Piaggio Group · 431065 Available
    € 1,21
21 Upper oil bulkhead Available B014135
22 Oil bulhead Available B014134
23 Screw Available 830061
24 Oil pressure adjusting valve Available 1A021814R
25 Valve spring Available B015431
  • Spring Piaggio Group · B015431 Available
    € 1,45
26 Screw Available 269755
  • Screw M8x12 Piaggio Group · 269755 · Quantity needed: 2 Available
    € 1,59
27 Washer Available 485703
  • Washer 8,2x12x1 mm Piaggio Group · 485703 · Quantity needed: 2 Available
    € 1,25
