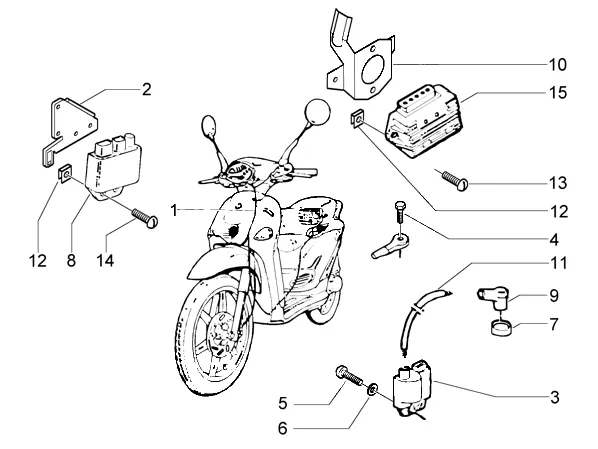

Exploded view — Electrical Device

Products

1 Main wiring harness 584641 No longer available

• 584641 Main wiring harness
  No longer available

2 Bracket 582824 No longer available

• 582824 Bracket
  No longer available

3 Ignition coil Available 82597R

•

  Ignition Coil Piaggio Group · 82597R Available

  € 30,67

  Add to cart

7 Protection collar Available 436919

•

  Protection piece Piaggio Group · 436919 Available

  € 2,47

  Add to cart

8 CDI unit Available 584612

•

  CDI Piaggio Group · 584612 Available

  € 341,46

  Add to cart

9 Spark plug cap Available 969348

•

  Spark Plug Connector for connection nut, L05EA, 90° Piaggio Group · 969348 Available

  € 16,29

  Add to cart

10 Bracket Backorder 581597

•

  Bracket Piaggio Group · 581597 Backorder

  € 10,81

  Add to cart

12 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 6 Available

  € 2,04

  Add to cart

13 Screw Available B016774

•

  Hexagon Screw M6x25 Piaggio Group · B016774 · Quantity needed: 4 Available

  € 1,48

  Add to cart

14 Screw Available B016426

•

  Flanged Screw M6x14 Piaggio Group · B016426 · Quantity needed: 4 Available

  € 1,48

  Add to cart

15 Voltage regulator 58090R5 No longer available

• 58090R5 Voltage regulator
  No longer available
