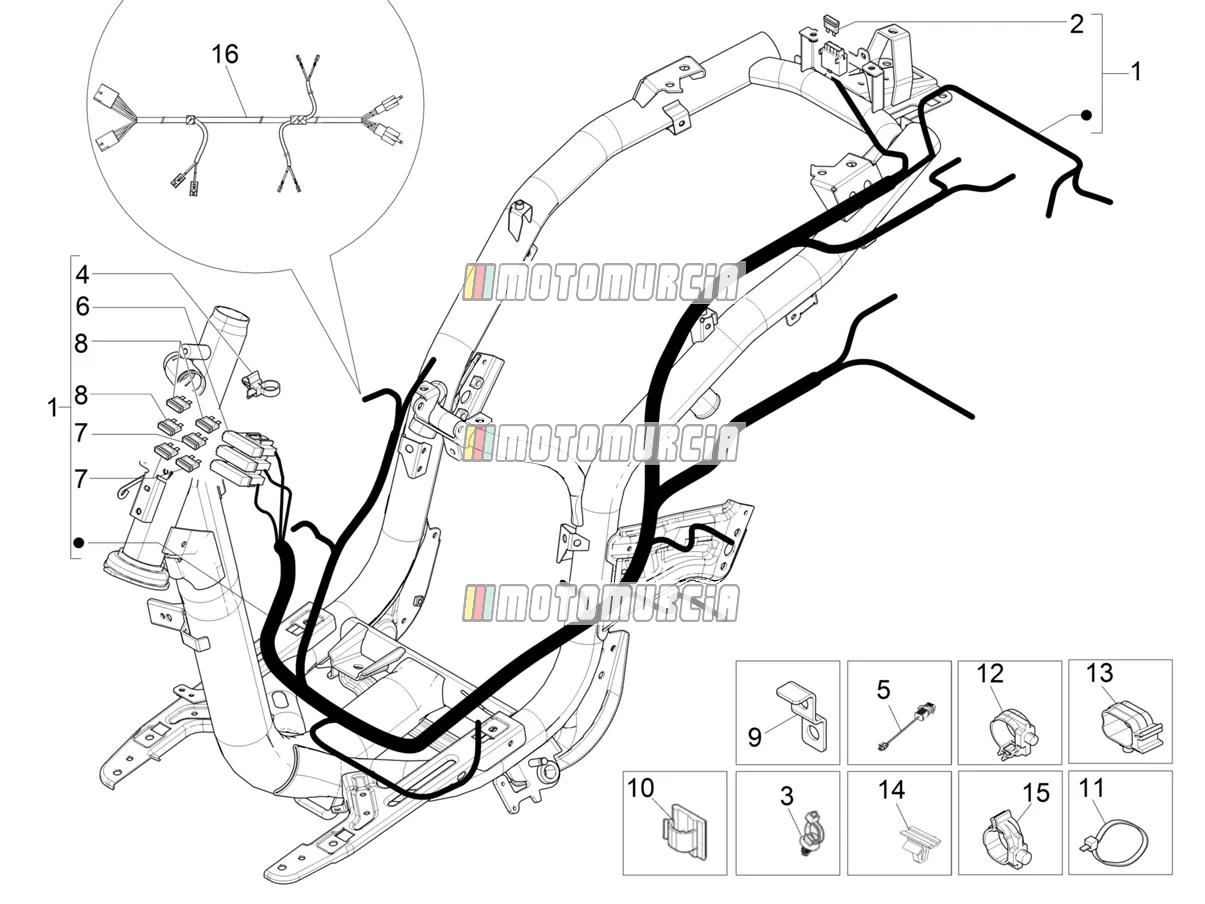

Exploded view — Main Cable Harness
‹ Back to model
Piaggio Liberty 125 Poste 2019
Products
1 Main wiring harness Backorder
-
Wiring harness Piaggio Group · 1D003028 Backorder · Shipped in 2–4 weeks€ 480,14
2 Fuse (20A) Available
-
- Country: China
Fuse 20 A Piaggio Group · 580561 Available · Shipped in 3–5 working days€ 6,01
3 Wiring clip Available
-
- Country: China
Clamp Piaggio Group · 1D001143 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,45
4 Clamp Available
-
Clamp Piaggio Group · 640879 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 5,83
5 USB port Available
-
1D002753 USB portUSB socket Piaggio Group · 1D003323 ↻ Replaces 1D002753, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 171,53
6 Fuse holder Backorder
-
Fuse Box Piaggio Group · 580653 · Quantity needed: 3 Backorder · Shipped in 2–4 weeks€ 14,21
7 Fuse (7,5A) Available
-
- Country: Australia
- Country: Europe
- Country: Indonesia-Malaysia-New Zealand-Singapore
Fuse 7,5 A Piaggio Group · 252945 Available · Shipped in 3–5 working days€ 2,86
8 Fuse (5A) Available
-
Fuse 5 A Piaggio Group · 293256 · Quantity needed: 3 Available · Shipped in 3–5 working days€ 2,09
9 Fairlead Available
-
- Country: China
Rubber bellows Piaggio Group · 563989 Available · Shipped in 3–5 working days€ 2,46
10 Spring clamp Available
-
Clip Piaggio Group · 577594 Available · Shipped in 3–5 working days€ 5,78
11 Lock-strap L=180mm Available
-
Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available · Shipped in 3–5 working days€ 1,43
12 Non return spring Available
-
- Country: China
Clamp Piaggio Group · CM006912 Available · Shipped in 3–5 working days€ 9,20
13 Non return spring L=33 Available
-
Clamp length: 33mm Piaggio Group · CM006906 Available · Shipped in 3–5 working days€ 5,01
14 Spring for connector Available
-
Clamp Piaggio Group · 639560 Available · Shipped in 3–5 working days€ 4,59
15 6 - Non return spring L=23 Available
-
- ABS version
Clamp length: 23mm Piaggio Group · CM006908 Available · Shipped in 3–5 working days€ 5,64
16 Luggage carrier cables unit Backorder
-
Wiring harness Piaggio Group · 639648 Backorder · Shipped in 2–4 weeks€ 41,49
