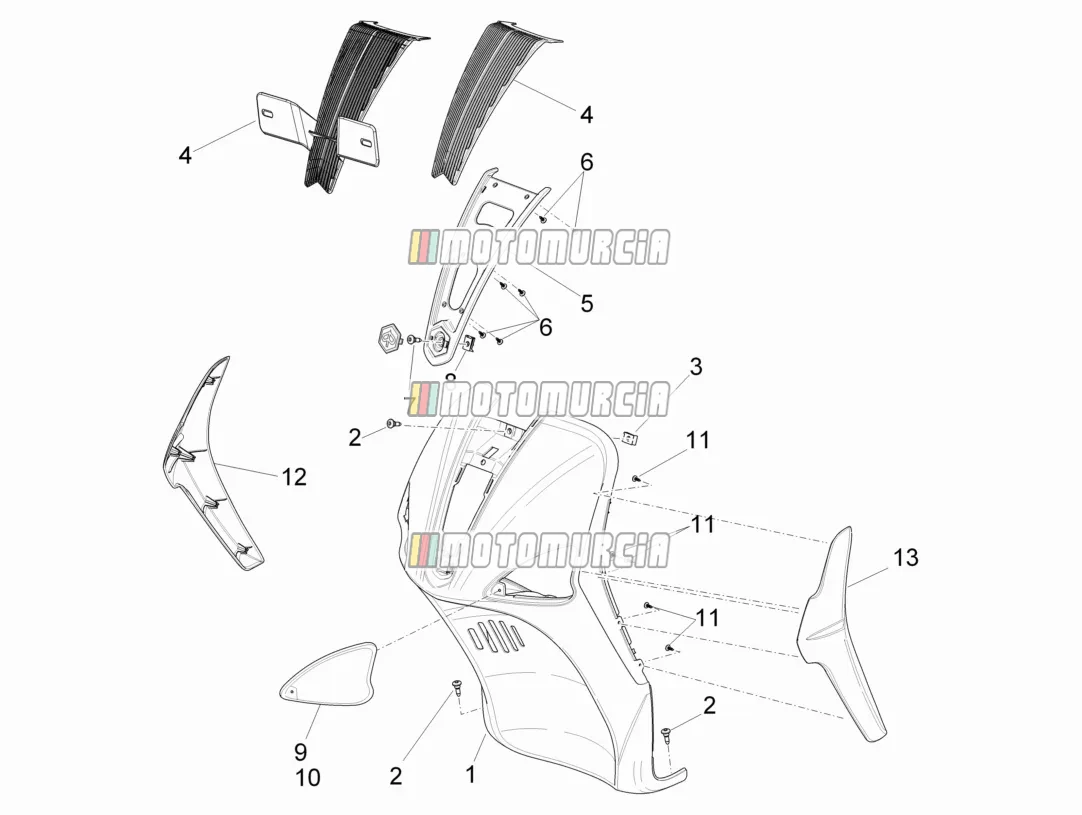

Exploded view — Front Shield
‹ Back to model
Piaggio Liberty 150 4T 2V ie E3 (APAC) 2012
Products
1 Front fairing Backorder
-
Front Shield, primed Piaggio Group · 672037 Backorder · Shipped in 2–4 weeks€ 134,90
-
Front Shield, white, Suffix: BT_white pearl 566 Piaggio Group · 67203700BT Backorder · Shipped in 2–4 weeks€ 168,67
-
67203700DE Front fairingNo longer available
-
67203700GV Front Protection PlateNo longer available
-
67203700ND Front fairingNo longer available
2 Screw Available
-
Screw M6x22 Piaggio Group · CM179201 · Quantity needed: 3 Available · Shipped in 3–5 working days€ 0,99
3 Clip nuts (M6) Available
-
Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days€ 2,04
4 Front grille Available
-
Cascade, grey Piaggio Group · 655751000C Available · Shipped in 3–5 working days€ 29,12
-
Cascade, APAC (Asia) Piaggio Group · 781053000C Backorder · Shipped in 2–4 weeks€ 10,87
5 Front central frame
-
672267 Front central frameNo longer available
6 Screw Available
-
Sheet Metal Screw Piaggio Group · 297498 · Quantity needed: 6 Available · Shipped in 3–5 working days€ 0,99
7 Screw Available
-
Screw M6x22 Piaggio Group · CM179201 Available · Shipped in 3–5 working days€ 0,99
-
Screw M6x22 Piaggio Group · CM179302 Available · Shipped in 3–5 working days€ 1,48
8 Clip nuts (M6) Available
-
Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days€ 2,04
9 Frame for right front indicators
-
641482 Frame for right front indicatorsNo longer available
10 Frame for left front indicators Available
-
641483 Frame for left front indicatorsCover, left Piaggio Group · 6414835 ↻ Replaces 641483, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 33,73
11 Screw Available
-
Sheet Metal Screw Piaggio Group · 297498 · Quantity needed: 10 Available · Shipped in 3–5 working days€ 0,99
12 Right front deflector Available
-
Cover, right, black, dyed Piaggio Group · 655747000C Available · Shipped in 3–5 working days€ 14,57
13 Left front deflector Available
-
Cover, left, black, dyed Piaggio Group · 655746000C Available · Shipped in 3–5 working days€ 14,57
