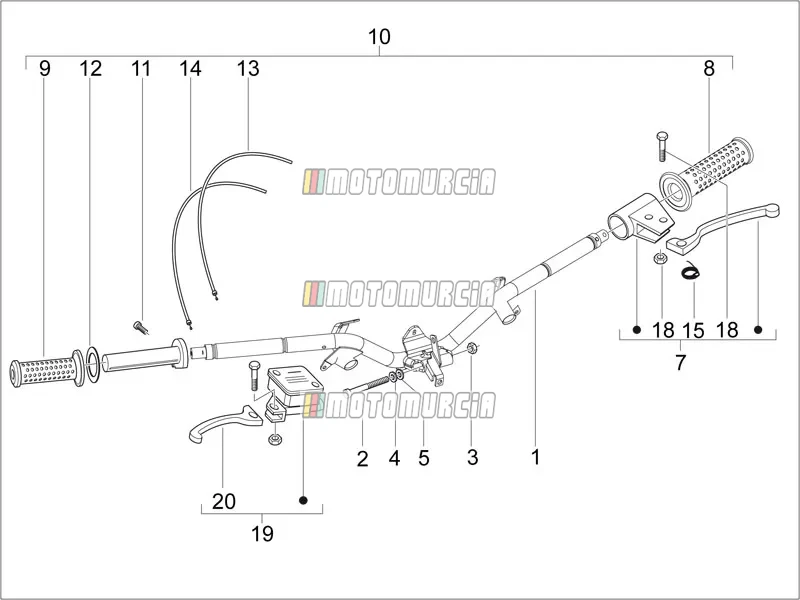

Exploded view — Handlebar - Master cil.
‹ Back to model
Piaggio Liberty 150 4T 2V ie E3 (APAC) 2012
Products
1 Handlebar
-
6725084 HandlebarNo longer available
2 Screw Available
-
Screw M10x65 Piaggio Group · 655554 Available · Shipped in 3–5 working days€ 2,27
3 Nut Available
-
Standard nut Piaggio Group · 015330 Available · Shipped in 3–5 working days€ 3,84
4 Washer (spring) Available
-
Washer Piaggio Group · 012543 Available · Shipped in 3–5 working days€ 1,43
5 Washer Available
-
Washer 22x10,3x2,5 mm Piaggio Group · 178790 Available · Shipped in 3–5 working days€ 1,74
7 Left hand grip with rear brake lever Available
-
Brake Handle left Piaggio Group · 651034 Available · Shipped in 3–5 working days€ 30,09
8 Complete left hand grip Available
-
Brake Handle left Piaggio Group · 6665104 Available · Shipped in 3–5 working days€ 16,70
9 Throttle grip Right Available
-
Rubber Grip right Piaggio Group · 666513 Available · Shipped in 3–5 working days€ 15,03
10 Throttle Control Sleeve Assembly
-
666512 Throttle Control Sleeve AssemblyNo longer available
-
667988 Throttle Control Sleeve AssemblyNo longer available
11 Screw Available
-
Screw Piaggio Group · 123394 Available · Shipped in 3–5 working days€ 2,86
12 Ring Available
-
Protection piece Piaggio Group · 666129 Available · Shipped in 3–5 working days€ 1,90
13 Throttle opening transmission Available
-
Throttle cable opening (VNM) Piaggio Group · 666706 Available · Shipped in 3–5 working days€ 17,86
-
667989 Gas lever transmissionThrottle cable opening Piaggio Group · 1C000159 ↻ Replaces 667989, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 20,52
14 Throttle closing transmission Backorder
-
Throttle cable closing (VNM) Piaggio Group · 666707 Backorder · Shipped in 2–4 weeks€ 18,34
15 Spring Available
-
Spring Piaggio Group · 267948 Available · Shipped in 3–5 working days€ 1,44
18 Screw Available
-
Screw with Nut Piaggio Group · 265249 Available · Shipped in 3–5 working days€ 3,99
19 Front brake hydraulic pump Heng Tong Available
-
Master brake cylinder Heng Tong, right Piaggio Group · CM085402 Available · Shipped in 3–5 working days€ 131,88
20 Brake lever (Heng Tong) Available
-
Brake Lever Heng Tong Piaggio Group · 666558 Available · Shipped in 3–5 working days€ 12,08
21 Brake lever Available
-
Clutch Lever Piaggio Group · 781120 Available · Shipped in 3–5 working days€ 20,16
