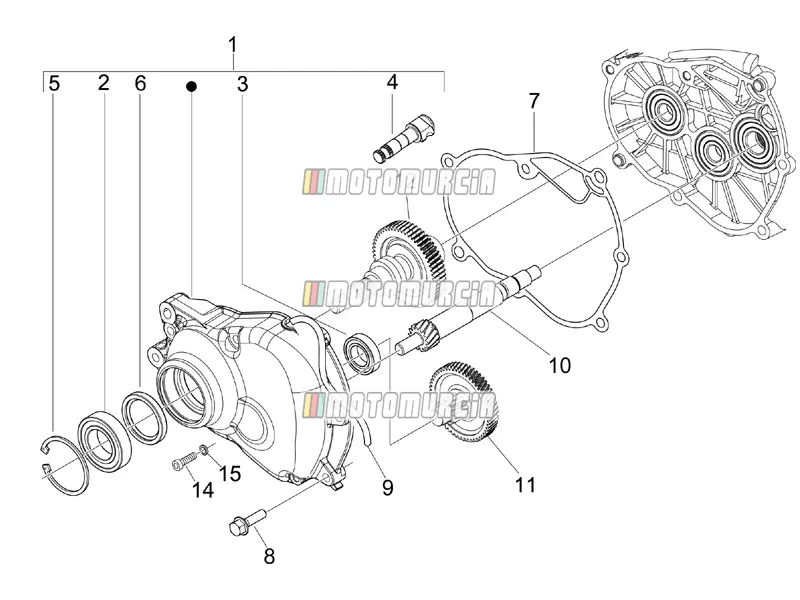

Exploded view — Reduction Unit

Products

1 Complete reducer cover Backorder 8460245

• 8460245 Complete reducer cover


  Gear Box Cover Piaggio Group · 1A0092775 ↻ Replaces 8460245, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks

  € 235,09

  Add to cart

2 Radial bearing 25x52x15 Available 478984

• 478984 Radial bearing 25x52x15


  Radial bearing 25x52x15 mm Piaggio Group · 4789845 ↻ Replaces 478984, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 28,86

  Add to cart

3 Radial ball bearing 15x42x13 Available 485912

• 485912 Radial ball bearing 15x42x13


  Radial bearing TM6302Y, 15x42x13 mm Piaggio Group · 83018R ↻ Replaces 485912, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 11,14

  Add to cart

4 Shoe fulcrum pin Available 272921

•

  Pin Piaggio Group · 272921 Available · Shipped in 3–5 working days

  € 15,02

  Add to cart

5 10 - Seeger Available 006652

•

  Circlip Piaggio Group · 006652 Available · Shipped in 3–5 working days

  € 1,80

  Add to cart

6 Oil seal Available 82899R

•

  Shaft Seal Piaggio Group · 82899R Available · Shipped in 3–5 working days

  € 15,28

  Add to cart

7 Reduction unit cover gasket Available 847930

•

  Cover Gasket Piaggio Group · 847930 Available · Shipped in 3–5 working days

  € 11,54

  Add to cart

8 Screw flanged M8x45 Available 487211

• 487211 Screw flanged M8x45 Quantity needed: 6


  Flanged Screw M8x45 Piaggio Group · B016805 ↻ Replaces 487211, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,48

  Add to cart
•

  Flanged Screw M8x40 Piaggio Group · 873980 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

9 Reducer breather pipe Available CM162202

•

  Breather Pipe Piaggio Group · CM162202 Available · Shipped in 3–5 working days

  € 21,97

  Add to cart

10 Driven pulley shaft Available 880622

•

  Input Shaft Piaggio Group · 880622 Available · Shipped in 3–5 working days

  € 148,38

  Add to cart

11 Transmission shaft Available 8258745

•

  Primary reduction gear Piaggio Group · 8258745 Available · Shipped in 3–5 working days

  € 323,38

  Add to cart

12 Wheel axle 8270885 No longer available

• 8270885 Wheel axle
  No longer available

14 Screw Available 269755

•

  Screw M8x12 Piaggio Group · 269755 Available · Shipped in 3–5 working days

  € 1,59

  Add to cart

15 Washer Available 485703

•

  Washer 8,2x12x1 mm Piaggio Group · 485703 Available · Shipped in 3–5 working days

  € 1,25

  Add to cart
