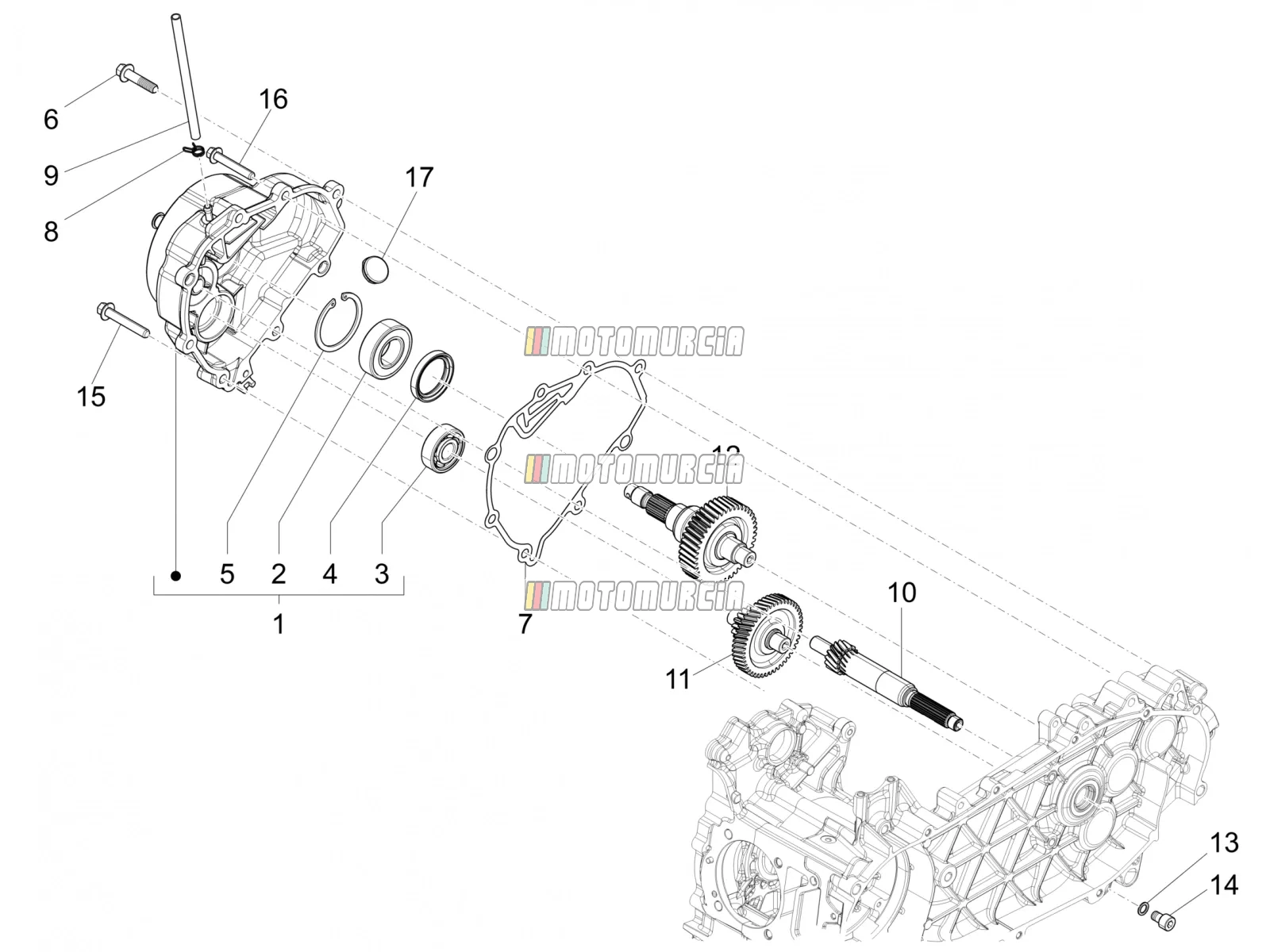

Exploded view — Reduction Unit

‹ Back to model
Piaggio Liberty 150 4T 3V ie 2013 Piaggio Liberty 150 4T 3V ie 2013
Reduction Unit

Products

1 Reducer cover with U.P. Available B0162665
  • Gear Box Cover Piaggio Group · B0162665 Available
    € 367,22
2 Radial bearing 25x52x15 83056R No longer available
  • 83056R Radial bearing 25x52x15
    No longer available
3 Radial bearing 15x42x13 Available 83026R
4 Gasket ring 35x47x7 Available B015623
5 Snap ring 52x56,2x2 Available B016556
6 Screw Available B016772
7 Reduction unit cover gasket Available B016456
  • Cover Gasket Piaggio Group · B016456 Available
    € 12,75
8 5 - Clamp Available CM002908
9 Reduction unit breather pipe assembly Available B018670
  • Breather Pipe Piaggio Group · B018670 Available
    € 14,44
10 Driven pulley shaft z 15 Z=15 Available B017168
  • Input Shaft Piaggio Group · B017168 Available
    € 254,23
11 Transmission shaft B019228 No longer available
  • B019228 Transmission shaft
    No longer available
12 Rear wheel axle with U.P. B019229 No longer available
  • B019229 Rear wheel axle with U.P.
    No longer available
13 Belleville spring Available B015991
  • Spring Washer Piaggio Group · B015991 Available
    € 1,45
14 Screw Available B016426
15 Screw Available 1A001623
  • Screw Piaggio Group · 1A001623 · Quantity needed: 3 Available
    € 0,99
16 Screw Available B016772
17 Dust gaiter cover Available 1A000004
  • Covering Cap Piaggio Group · 1A000004 Available
    € 5,29

More drawings of this model

View all →
