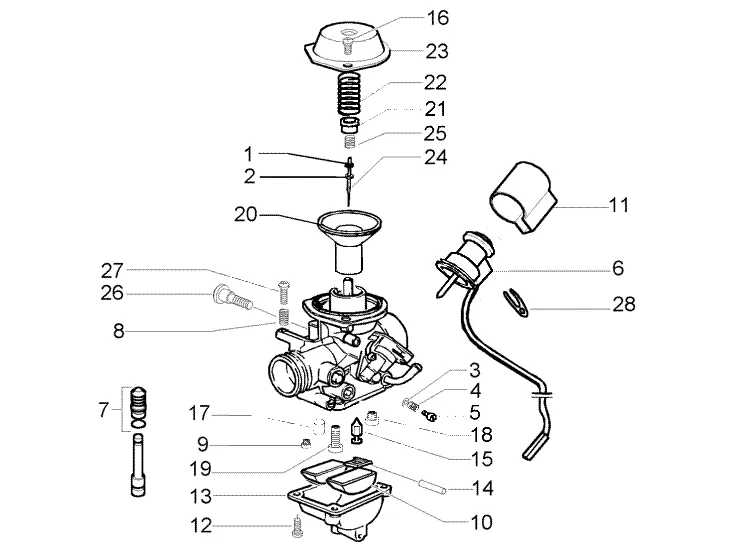

Exploded view — Carburettor

Products

1 Seeger 826822 No longer available

• 826822 Seeger
  No longer available

2 Washer 826821 No longer available

• 826821 Washer
  No longer available

3 Gasket ring 826843 No longer available

• 826843 Gasket ring
  No longer available

4 Spring 826839 No longer available

• 826839 Spring
  No longer available

5 Adj.min.eng.speed screw CM106401 No longer available

• CM106401 Adj.min.eng.speed screw
  No longer available

6 Starter plunger (Keihin) Available CM142904

•

  Choke elektrisch Piaggio Group · CM142904 Available

  € 173,04

  Add to cart

7 Float chamber cpl. CM156706 No longer available

• CM156706 Float chamber cpl.
  No longer available

8 Spring Backorder 826825

•

  Spring Piaggio Group · 826825 Backorder

  € 8,86

  Add to cart

9 Idle jet Available CM140101

•

  Jet Piaggio Group · CM140101 Available

  € 13,82

  Add to cart

10 Carburetor, Float assy Available 842522

•

  Float Piaggio Group · 842522 Available

  € 81,24

  Add to cart

11 Cap Available 828844

•

  Covering Cap Piaggio Group · 828844 Available

  € 17,47

  Add to cart

12 Screw 826770 No longer available

• 826770 Screw Quantity needed: 4
  No longer available

13 Float chamber cpl. CM156706 No longer available

• CM156706 Float chamber cpl.
  No longer available

14 Pin 826811 No longer available

• 826811 Pin
  No longer available

15 Petrol needle Available CM147102

•

  Float Needle Piaggio Group · CM147102 Available

  € 18,08

  Add to cart

16 Screw 826780 No longer available

• 826780 Screw Quantity needed: 3
  No longer available

17 Starter cap 826768 No longer available

• 826768 Starter cap
  No longer available

18 Main jet Available CM129914

•

  Jet Piaggio Group · CM129914 Available

  € 19,38

  Add to cart

19 Diffuser tube CM104905 No longer available

• CM104905 Diffuser tube
  No longer available

20 Carburettor diaphragm Available CM140302

•

  Carburettor membrane Piaggio Group · CM140302 Available

  € 149,37

  Add to cart

21 Cup Available 828822

•

  Needle Jet Holder Piaggio Group · 828822 Available

  € 5,07

  Add to cart

22 Spring Available CM140903

•

  Spring Piaggio Group · CM140903 Available

  € 16,70

  Add to cart

23 Gas valve cover Available 842514

•

  Lid Piaggio Group · 842514 Available

  € 49,63

  Add to cart

24 Conical pin Available CM140205

•

  Metering Needle NJHA Piaggio Group · CM140205 Available

  € 15,44

  Add to cart

25 Spring 826818 No longer available

• 826818 Spring
  No longer available

26 Screw Available 826826

•

  Screw Piaggio Group · 826826 · Quantity needed: 2 Available

  € 5,83

  Add to cart

27 Screw Backorder 826824

•

  Screw Piaggio Group · 826824 Backorder

  € 16,71

  Add to cart

28 Plate Available 828843

•

  Locking Plate Piaggio Group · 828843 Available

  € 15,28

  Add to cart
