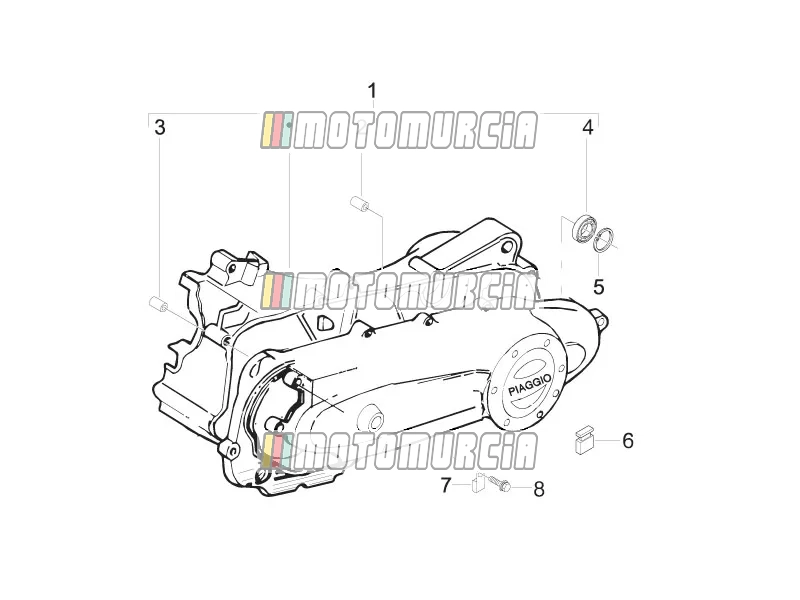

Exploded view — Crankcase Cover - Crankcase Cooling

‹ Back to model

Piaggio Liberty 50 2T 2009

Piaggio Liberty 50 2T 2009

Crankcase Cover - Crankcase Cooling

Products

1 Transmission cover Available 8256465

Housing cover Piaggio Group · 8256465 Available

€ 160,72

2 Bush Available 286209

Bronze Bushes Piaggio Group · 286209 Available

€ 2,93

3 Bush Ø8xØ12x8 Available 431860

Bronze Bushes 8x12x8 Piaggio Group · 431860 Available

€ 1,65

4 Bearing Available 82521R

Ball bearing 638 Z, 8x28x9 mm Piaggio Group · 82521R Available

€ 23,82

5 Seeger Available 006416

Locking Ring Piaggio Group · 006416 Available

€ 1,65

6 Rubber, stand stopper Available 259625

Rubber stop 20x19x30 mm Piaggio Group · 259625 Available

€ 4,88

7 4 - Hose clamp Available 844964

Clamp Piaggio Group · 844964 Available

€ 2,27

8 Screw Available 414838

Screw M6x35 Piaggio Group · 414838 · Quantity needed: 13 Available

€ 1,48
