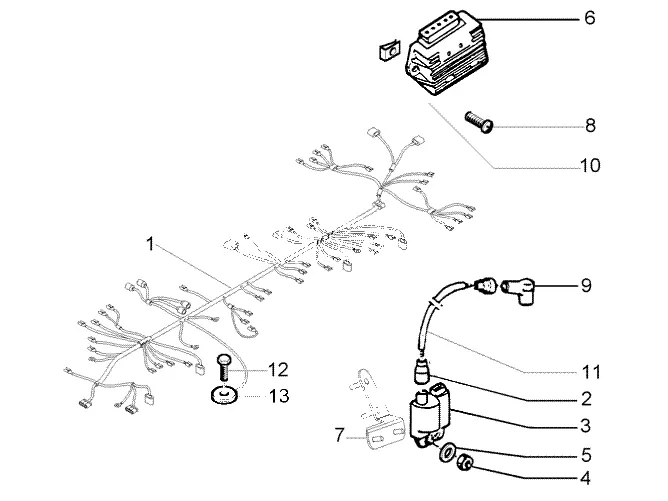

Exploded view — Electrical Device

Products

1 Main wiring harness 638872 No longer available

• 638872 Main wiring harness
  No longer available

2 Insulating cap Available 231571

•

  Cap Piaggio Group · 231571 Available

  € 3,84

  Add to cart

3 CDI unit (2t) Available 58095R

•

  Ignition Coil Piaggio Group · 58095R Available

  € 67,76

  Add to cart

4 Nut Available 241937

•

  Standard nut Piaggio Group · 241937 · Quantity needed: 2 Available

  € 0,99

  Add to cart

5 Washer 016686 No longer available

• 016686 Washer Quantity needed: 2
  No longer available

6 Voltage regulator Available 58096R

•

  Regulator, with flasher relay Piaggio Group · 58096R Available

  € 82,72

  Add to cart

7 Bracket 641661 No longer available

• 641661 Bracket
  No longer available

8 Screw Available B016774

•

  Hexagon Screw M6x25 Piaggio Group · B016774 · Quantity needed: 2 Available

  € 1,48

  Add to cart

9 Spark plug cap Available 825186

•

  Spark Plug Connector Piaggio Group · 825186 Available

  € 29,05

  Add to cart

10 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart

11 H.V. cable Available 080341

•

  Ignition Lead Piaggio Group · 080341 Available

  € 3,88

  Add to cart

12 Screw Available B016426

•

  Flanged Screw M6x14 Piaggio Group · B016426 · Quantity needed: 2 Available

  € 1,48

  Add to cart

13 Washer Available 016406

•

  Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 2 Available

  € 1,79

  Add to cart
