Exploded view — Carburettor, Assembly - Union Pipe

‹ Back to model

Piaggio Liberty 50 4T Sport 2007

Piaggio Liberty 50 4T Sport 2007

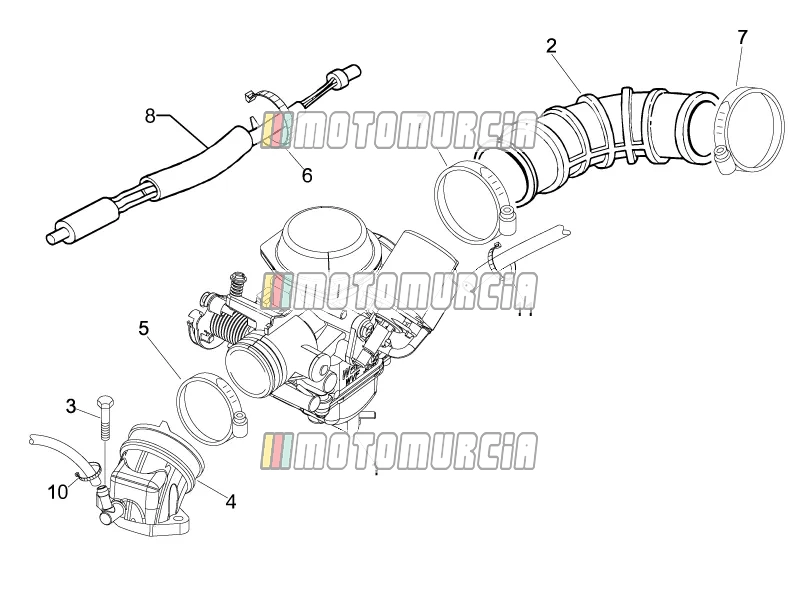

Carburettor, Assembly - Union Pipe

Products

1 Carburettor Available CM141914

Carburettor Piaggio Group · CM141914 Available

€ 407,82

2 Air bellow Available 845489

Fork Dust Cover Piaggio Group · 845489 Available

€ 31,44

3 Screw Available 031091

Hexagon Screw M6x22 Piaggio Group · 031091 · Quantity needed: 2 Available

€ 0,99
Flanged Screw M6x20 Piaggio Group · 018639 · Quantity needed: 2 Available

€ 2,77

4 Intake Manifold Available 845946

Intake manifold Piaggio Group · 845946 Available

€ 27,81

6 Hose clamp Available 257134

Cable Ties length: 27,7cm Piaggio Group · 257134 Available

€ 0,99

7 Clamp Available 1A000833

Clamp Piaggio Group · 1A000833 Available

€ 10,74

8 Resistor Module Available 582619

Resistor Piaggio Group · 582619 Available

€ 27,76

9 Gasket - float chamber Available 497038

Gasket for float chamber Piaggio Group · 497038 Available

€ 13,09

10 Clamp Available CM002902

Clamp Piaggio Group · CM002902 Available

€ 0,99

11 Clamp Available CM002903

Clamp Piaggio Group · CM002903 Available

€ 0,99
