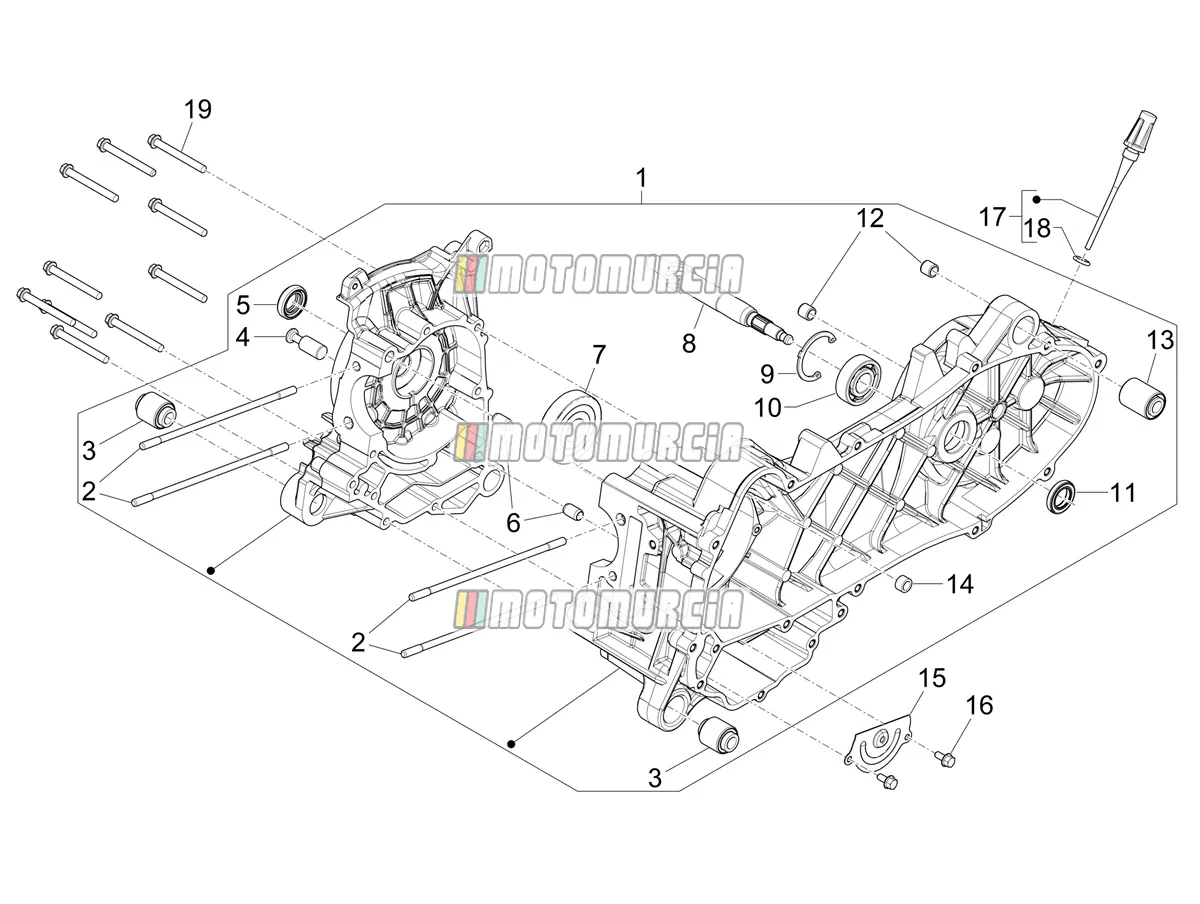

Exploded view — Crankcase

Products

1 Crankcase assembly 1A007110 No longer available

• 1A007110 Crankcase assembly
  No longer available

2 Stud bolt Available 842161

•

  Stud Screw Piaggio Group · 842161 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 7,61

  Add to cart

3 Silentblock - engine mount Available 486081

•

  Silentblock Piaggio Group · 486081 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 10,29

  Add to cart

4 Springs fixing pin Available 483785

•

  Bolts Piaggio Group · 483785 Available · Shipped in 3–5 working days

  € 5,78

  Add to cart

5 Crankshaft oil seal Available 969028

•

  Shaft Seal 17x28x7 mm Piaggio Group · 969028 Available · Shipped in 3–5 working days

  € 7,27

  Add to cart

6 Pin 6.5x9.5x15 mm Backorder 239388

• 239388 Pin 6.5x9.5x15 mm Quantity needed: 2


  Adapter Sleeve 9,5x15 Piaggio Group · B015956 ↻ Replaces 239388, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks

  € 1,32

  Add to cart

7 Bearing Available 82671R

•

  Ball bearing TM-SC04C27/CS40, 20x60x13 mm Piaggio Group · 82671R Available · Shipped in 3–5 working days

  € 36,89

  Add to cart

  Alternatives from other brands

  BEARING 3TM-SC04C27CS40 - NTN (CRANKSHAFT) Athena · MS200600130AA Backorder · Shipped in 2–5 weeks

  € 19,52

  Add to cart

8 Driven pulley shaft (Z=14) Available 480848

•

  Input Shaft Piaggio Group · 480848 Available · Shipped in 3–5 working days

  € 159,60

  Add to cart

9 Seeger Available 480953

•

  Snap-in Ring Piaggio Group · 480953 Available · Shipped in 3–5 working days

  € 1,65

  Add to cart

10 Bearing Available 435363

•

  Ball bearing 6203, 17x40x12 mm Piaggio Group · 435363 Available · Shipped in 3–5 working days

  € 11,19

  Add to cart

11 Gasket ring Available 480066

•

  Shaft Seal 28x17x5 mm Piaggio Group · 480066 Available · Shipped in 3–5 working days

  € 12,17

  Add to cart

12 Locating dowel Ø11x10 mm Available 478115

• 478115 Locating dowel Ø11x10 mm Quantity needed: 2


  Adapter Sleeve 11x8,1x10 Piaggio Group · B015957 ↻ Replaces 478115, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,26

  Add to cart

13 Silentblock Available 666991

•

  Silentblock Piaggio Group · 666991 Available · Shipped in 3–5 working days

  € 4,88

  Add to cart

14 Bush Ø8xØ12x8 Available 431860

•

  Bronze Bushes 8x12x8 Piaggio Group · 431860 Available · Shipped in 3–5 working days

  € 1,65

  Add to cart

15 Oil bulhead Available 969625

•

  Oil Partition Plate Piaggio Group · 969625 Available · Shipped in 3–5 working days

  € 7,32

  Add to cart

16 Screw Available 484123

•

  Flanged Screw Piaggio Group · 484123 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

17 Complete oil level dipstick Available 832130

•

  Oil dipstick Piaggio Group · 832130 Available · Shipped in 3–5 working days

  € 6,34

  Add to cart

18 Gasket ring Available 827085

•

  Oil seal 14,43x9,19x2,62 mm Piaggio Group · 827085 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

19 Screw Available 478895

•

  Flanged Screw Piaggio Group · 478895 · Quantity needed: 10 Available · Shipped in 3–5 working days

  € 2,77

  Add to cart
