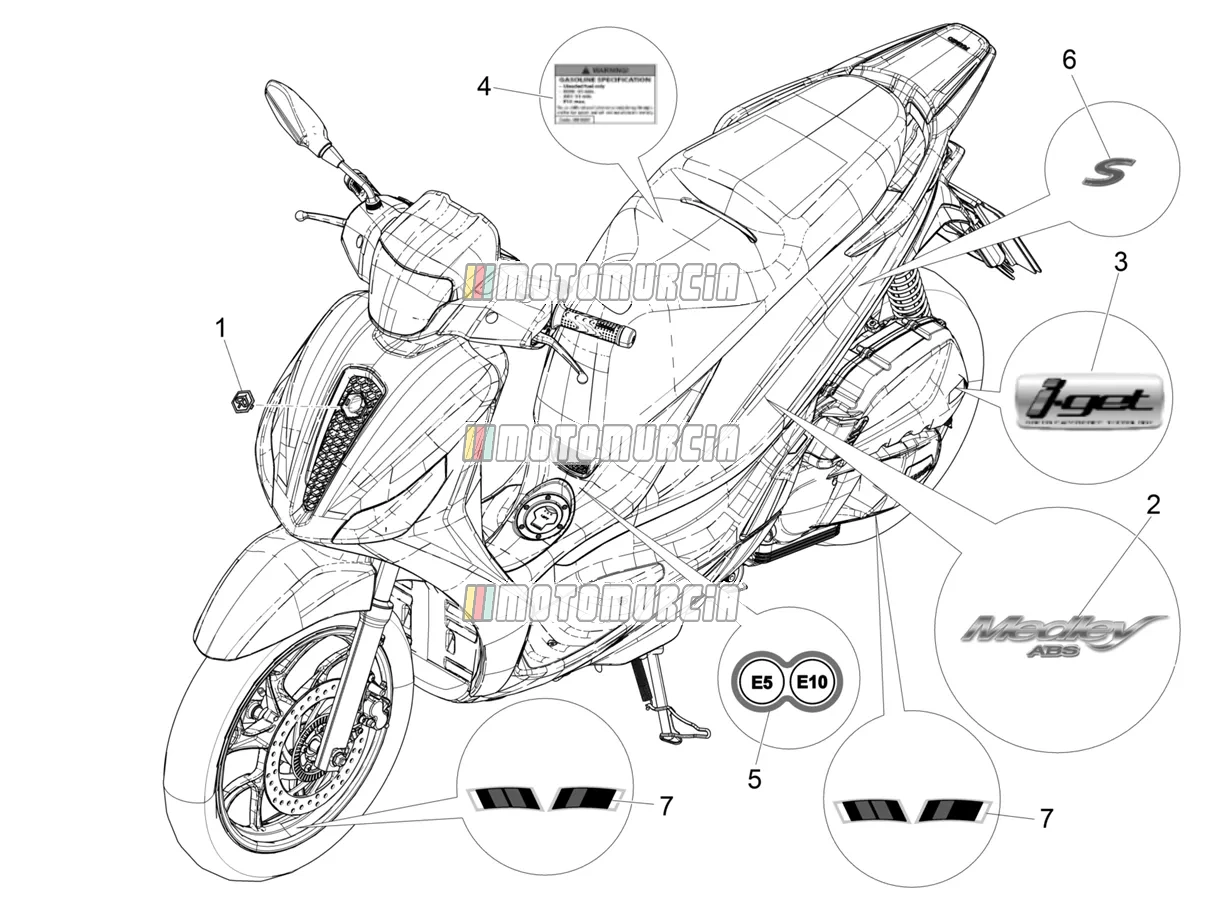

Exploded view — Plates - Emblems

‹ Back to model

Piaggio Medley 125 ABS (APAC) 2021

Piaggio Medley 125 ABS (APAC) 2021

Plates - Emblems

Products

1 Emblem - Decal (42 mm) Available 1B003766

Emblem, motive: Piaggio, blue, silver, Ø 42,00 mm, for plugging in Piaggio Group · 1B003766 Available

€ 14,00

2 Name plate "Medley" Available 2H001491

Lettering, motive: Medley Piaggio Group · 2H001491 Available

€ 23,99

3 Sticker - Decal (I-GET) Available 2H001199

Decal, motive: i-get Piaggio Group · 2H001199 Available

€ 13,27

4 Fuel decal Available 1B009257

Fuel decal Piaggio Group · 1B009257 Available

€ 3,21

5 Name plate E5/E10 Available 2B0059385

Sticker, motive: E5/E10 Piaggio Group · 2B0059385 Available

€ 1,32

6 Name plate "S" Available 2H001493

Decal, motive: S Piaggio Group · 2H001493 Available

€ 6,36

7 Wheel decal kit Available 2H003683

Wheel Stripes Piaggio Group · 2H003683 Available

€ 17,57
