Exploded view — Crankcase
‹ Back to model
Piaggio Medley 150 4T ABS E3-E4 (APAC) 2025
Products

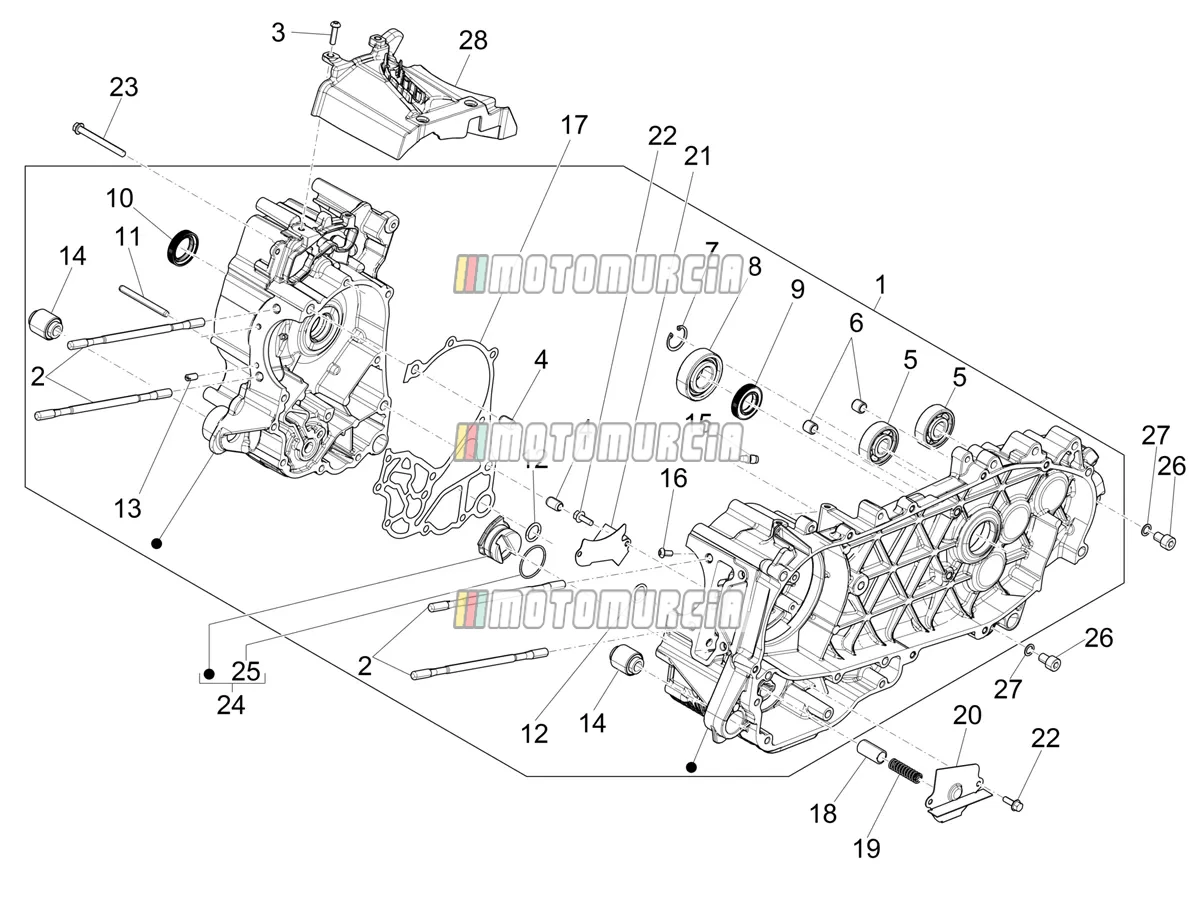

1 Complete crankcase 1st category.
-
CM30740201 Complete crankcase 1st category.No longer available
-
CM30740202 2nd cat. complete crankcaseNo longer available
2 Stud bolt Available
-
Stud Screw Piaggio Group · 1A001406 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 6,01
3 Self-tapping screw M5x20 Available
-
1A000324 Self-tapping screw M5x20 Quantity needed: 4Torx screw M5x20 Piaggio Group · B016808 ↻ Replaces 1A000324, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 1,48
4 Dowel pin Backorder
-
Adapter Sleeve 9,5x15 Piaggio Group · B015956 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks€ 1,32
5 Radial bearing 15x42x13 Available
-
Radial bearing Piaggio Group · 83026R · Quantity needed: 2 Available · Shipped in 3–5 working days€ 5,94
6 Dowel pin Available
-
Adapter Sleeve 11x8,1x10 Piaggio Group · B015957 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,26
7 Seeger Available
-
Circlip 25x26,9x1,2 mm Piaggio Group · B015959 Available · Shipped in 3–5 working days€ 1,48
8 Radial bearing 20x50x14 Available
-
Radial bearing 20x50x14 mm Piaggio Group · 83027R Available · Shipped in 3–5 working days€ 12,10
9 Gasket ring 20.35.7 Available
-
Shaft Seal 20x35x7 mm Piaggio Group · 1A005746 Available · Shipped in 3–5 working days€ 12,37
10 Gasket ring 24.35.7 Available
-
Shaft Seal 24x35x7 mm Piaggio Group · 1A005745 Available · Shipped in 3–5 working days€ 12,37
11 Stud bolt Available
-
Stud Screw Piaggio Group · 1A001860 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 10,04
12 O-Ring Available
-
O-Ring Piaggio Group · 273754 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 0,99
13 3 - Calibrated nozzle Available
-
Calibrated nozzle Piaggio Group · 1A001364 Available · Shipped in 3–5 working days€ 5,81
14 Silentblock - engine mount Available
-
Buffer Piaggio Group · 1A008919R Available · Shipped in 3–5 working days€ 9,58
-
Silentblock Piaggio Group · 486081 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 10,29
15 Piston cooling jet Available
-
Calibrated nozzle Piaggio Group · 1A002024 Available · Shipped in 3–5 working days€ 12,33
16 Screw Available
-
Screw Piaggio Group · 1A005607 Available · Shipped in 3–5 working days€ 2,93
17 Gasket - crankcase Available
-
Gasket Piaggio Group · 1A001115 Available · Shipped in 3–5 working days€ 12,93
18 Oil pressure adjusting valve Available
-
B015432 Oil pressure adjusting valveOil pressure switch Piaggio Group · 1A021814R ↻ Replaces B015432, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 4,05
19 Valve spring Available
-
Spring Piaggio Group · B015431 Available · Shipped in 3–5 working days€ 1,45
20 Oil bulhead Available
-
Oil Partition Plate Piaggio Group · B014134 Available · Shipped in 3–5 working days€ 10,49
21 Upper oil bulkhead Available
-
Oil Partition Plate Piaggio Group · B014135 Available · Shipped in 3–5 working days€ 7,79
22 Screw Available
-
Flanged Screw M5x16 Piaggio Group · 830061 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 2,77
23 Flanged hexagonal head, flanged (TEF) screw M6x60 Available
-
1A000322 Flanged hexagonal head, flanged (TEF) screw M6x60 Quantity needed: 11Flanged Screw M6x60 Piaggio Group · B016425 ↻ Replaces 1A000322, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 1,82
24 Filter door insert Available
-
Lid Piaggio Group · B015430 Available · Shipped in 3–5 working days€ 7,13
25 O-Ring Available
-
Oil seal Piaggio Group · 431065 Available · Shipped in 3–5 working days€ 1,21
26 Screw Available
-
Screw M8x12 Piaggio Group · 269755 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,59
27 Flat washer Available
-
B015954 Flat washer Quantity needed: 2Washer 8,2x12x1 mm Piaggio Group · 485703 ↻ Replaces B015954, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 1,25
28 Air duct Backorder
-
Air Intake Piaggio Group · 1A004883 Backorder · Shipped in 2–4 weeks€ 23,09
