Exploded view — Saddle/seats

‹ Back to model

Piaggio Medley 150 ie ABS (E3, E4) (APAC) 2020

Piaggio Medley 150 ie ABS (E3, E4) (APAC) 2020

Saddle/seats

Products

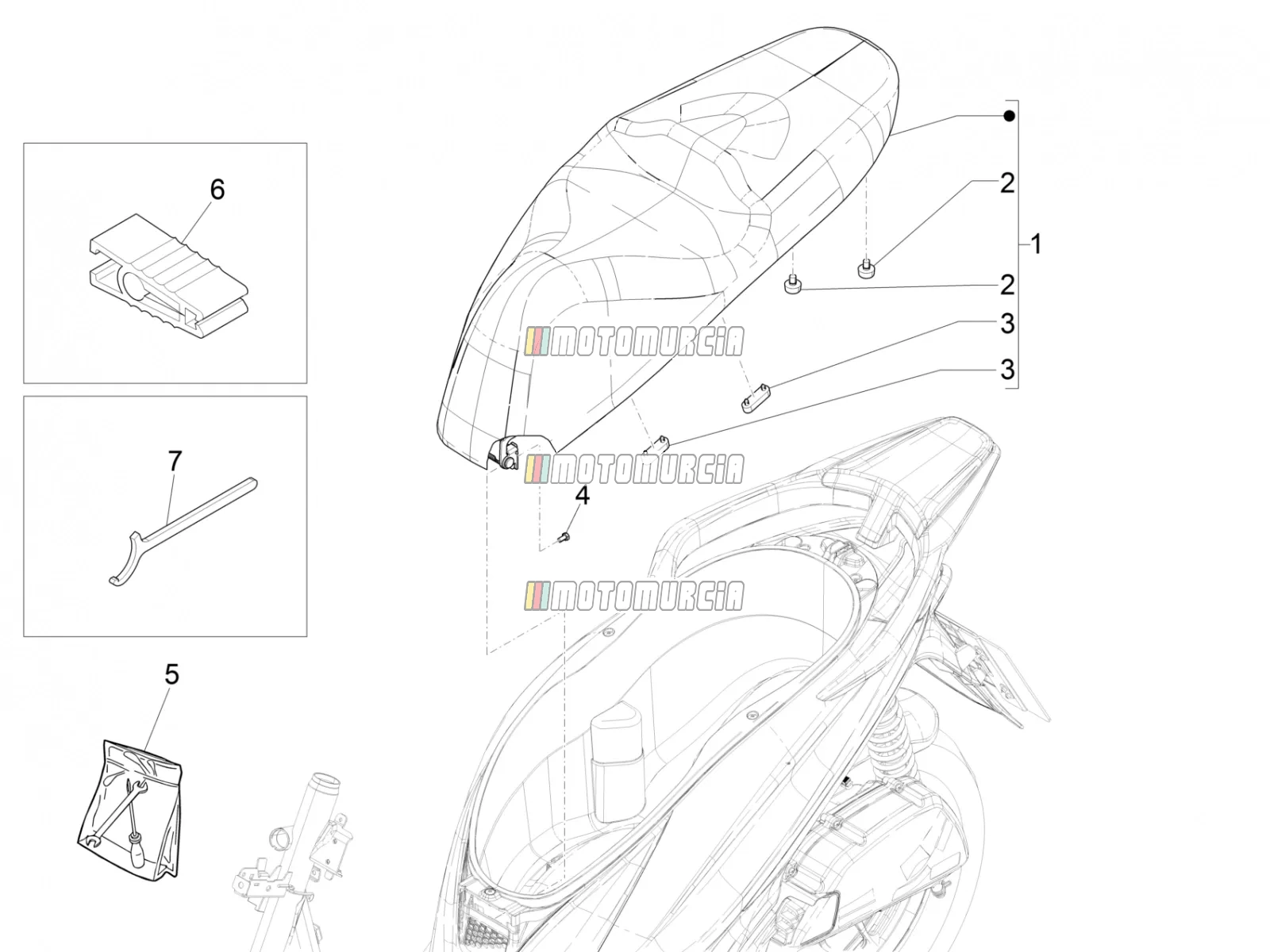

1 Assembly saddle with stitching red Available 1B006366000C2

Seat seam: red Piaggio Group · 1B006366000C2 Available

€ 223,00
Seat brown Piaggio Group · 1B006366000C1 Backorder

€ 223,00

2 Pad Available 577492

Buffer Piaggio Group · 577492 · Quantity needed: 2 Available

€ 5,38

3 Stop buffer Available 296456

Buffer Piaggio Group · 296456 · Quantity needed: 2 Available

€ 3,18

4 Screw Available 031086

Screw M6x12 Piaggio Group · 031086 Available

€ 1,31

5 Tool set, standard l/jack 1C0021475 No longer available

1C0021475 Tool set, standard l/jack
No longer available

6 Fuse puller tool Available 584654

Puller for fuse Piaggio Group · 584654 Available

€ 3,94

7 Shock absorber tool Available 648069

Hook wrench for shock absorber Piaggio Group · 648069 Available

€ 14,53
