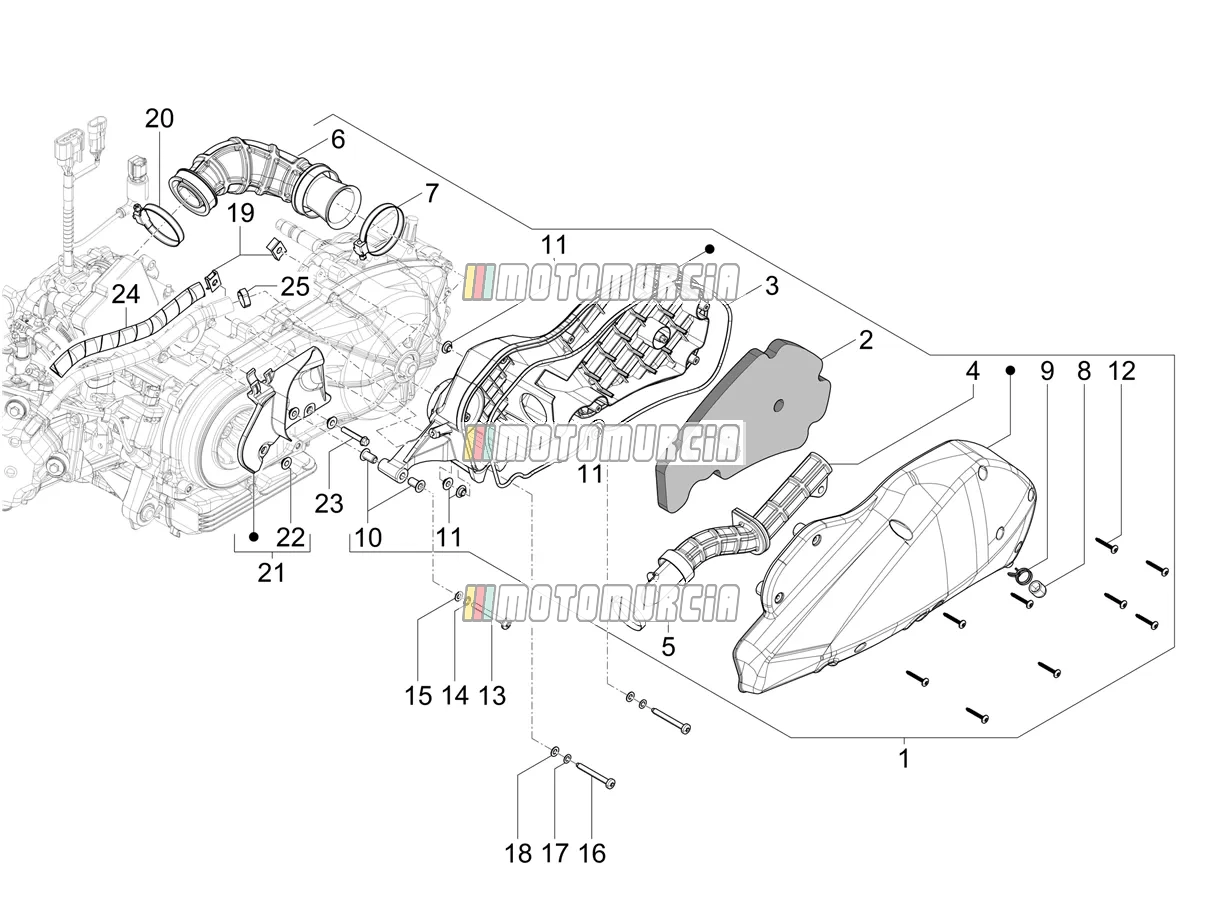

Exploded view — Air Filter

Products

1 * COMPLETE AIR CLEANER BOX Available 1A024001

•

  * COMPLETE AIR CLEANER BOX Piaggio Group · 1A024001 Available

  € 210,06

  Add to cart

2 Air filter Available 8292580P

•

  Air Filter Insert Premium Piaggio Group · 8292580P Available

  € 12,15

  Add to cart

3 Seal air filter box Available 829259

•

  Gasket Piaggio Group · 829259 Available

  € 13,09

  Add to cart

4 Intake hose Available 1A011539

•

  Intake Boot Piaggio Group · 1A011539 Available

  € 84,78

  Add to cart

5 Clamp Available CM001928

•

  Clamps Piaggio Group · CM001928 Available

  € 8,91

  Add to cart

6 * AIR CLEANER MANIFOLD Available 1A027517

•

  * AIR CLEANER MANIFOLD Piaggio Group · 1A027517 Available

  € 50,20

  Add to cart

7 Clamp Available 260918

•

  Clamp Piaggio Group · 260918 Available

  € 5,13

  Add to cart

8 Cap Available 827831

•

  Cap, transparent Piaggio Group · 827831 Available

  € 5,74

  Add to cart

9 Clamp Available CM002910

•

  Clamping Spring Piaggio Group · CM002910 Available

  € 1,29

  Add to cart

10 Bushing Available 830057

•

  Spacer Bush Piaggio Group · 830057 · Quantity needed: 2 Available

  € 4,15

  Add to cart

11 Spacer Available 830056

•

  Sleeve Piaggio Group · 830056 · Quantity needed: 4 Available

  € 1,48

  Add to cart

12 Screw Available 478533

•

  Thread Screw Piaggio Group · 478533 · Quantity needed: 9 Available

  € 1,26

  Add to cart

13 Metric screw torx Available CM179306

•

  Torx screw Piaggio Group · CM179306 Available

  € 2,93

  Add to cart

14 Washer Available 012533

•

  Washer 6,6x11 mm Piaggio Group · 012533 Available

  € 1,45

  Add to cart

15 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 Available

  € 1,84

  Add to cart

16 Screw (spec) Available 1B000678

•

  Screw Piaggio Group · 1B000678 · Quantity needed: 2 Available

  € 0,99

  Add to cart

17 Washer Available 012533

•

  Washer 6,6x11 mm Piaggio Group · 012533 · Quantity needed: 2 Available

  € 1,45

  Add to cart

18 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 · Quantity needed: 2 Available

  € 1,84

  Add to cart

19 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart

20 Clamp Available 260918

•

  Clamp Piaggio Group · 260918 Available

  € 5,13

  Add to cart

21 PARATIA COMPLETA Backorder 1B011537

•

  PARATIA COMPLETA Piaggio Group · 1B011537 Backorder

  € 21,02

  Add to cart

22 Spacer Available 830056

•

  Sleeve Piaggio Group · 830056 · Quantity needed: 3 Available

  € 1,48

  Add to cart

23 Screw Available 414838

•

  Screw M6x35 Piaggio Group · 414838 Available

  € 1,48

  Add to cart

24 TUBO ISOLANTE Backorder CM083618

•

  TUBO ISOLANTE Piaggio Group · CM083618 Backorder

  € 11,20

  Add to cart

25 Clamp Available CM001904

•

  Clamp Piaggio Group · CM001904 Available

  € 1,72

  Add to cart
