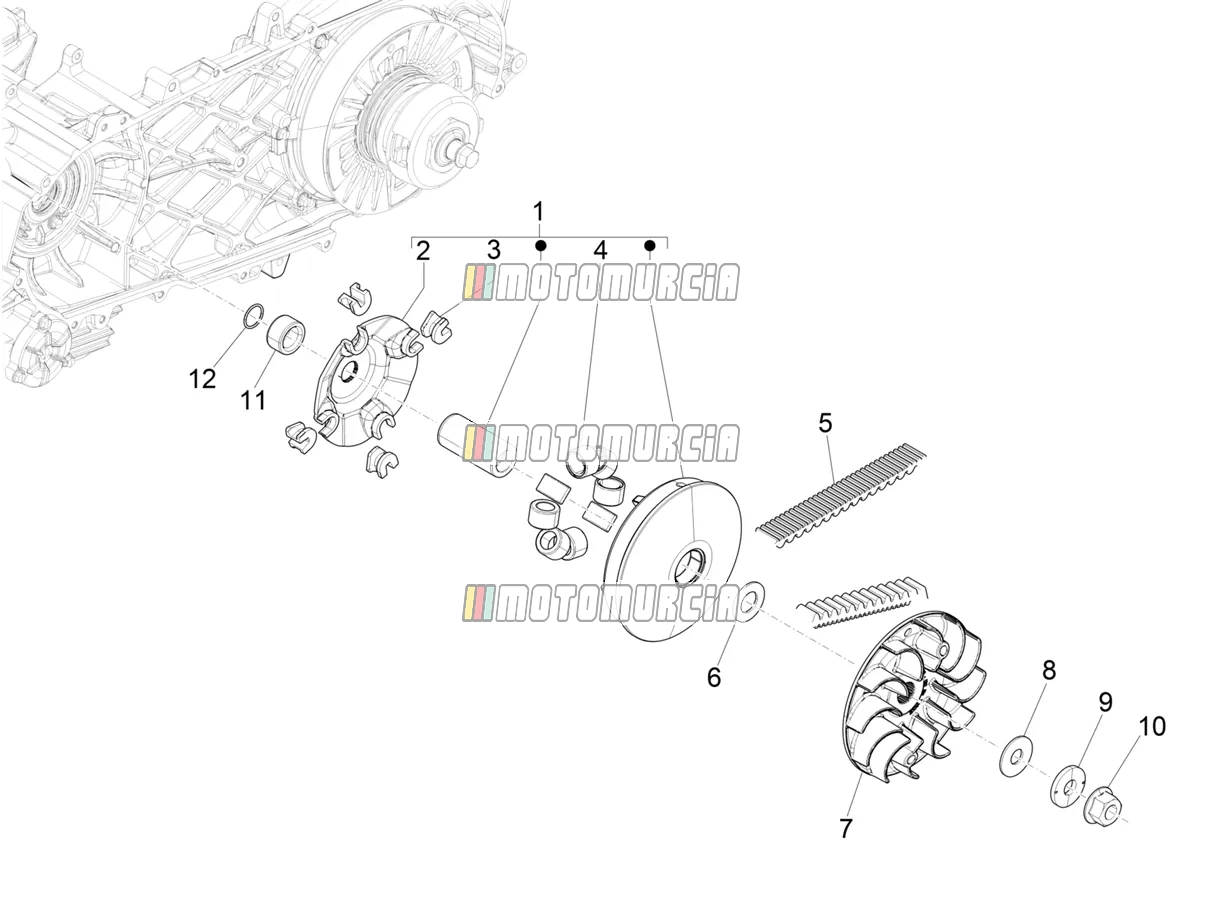

Exploded view — Driving Pulley

Products

1 Complete roller housing Available CM321102

•

  Variator with 8 rollers Piaggio Group · CM321102 Available · Shipped in 3–5 working days

  € 132,13

  Add to cart

2 Roller housing back plate Available B014703

•

  Calotte Piaggio Group · B014703 Available · Shipped in 3–5 working days

  € 44,43

  Add to cart

3 Variator slider Available B014584

•

  Slide Piaggio Group · B014584 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 5,77

  Add to cart

4 Roller weights Available 1A019456

•

  Variator roller 25x16 mm, 18,5 g, Content: 1 Stk Piaggio Group · 1A019456 · Quantity needed: 8 Available · Shipped in 3–5 working days

  € 4,73

  Add to cart

5 V-belt Available 1A016410

•

  V-Belt Piaggio Group · 1A016410 Available · Shipped in 3–5 working days

  € 154,11

  Add to cart

6 Washer Available 878810

•

  Washer Piaggio Group · 878810 Available · Shipped in 3–5 working days

  € 4,56

  Add to cart

7 Fixed driving half pulley Available 1A016668

•

  Pulley halves Piaggio Group · 1A016668 Available · Shipped in 3–5 working days

  € 59,29

  Add to cart

8 Washer Available 840655

•

  Washer Piaggio Group · 840655 Available · Shipped in 3–5 working days

  € 8,91

  Add to cart

9 Belleville spring Available B015049

•

  Cup Spring Piaggio Group · B015049 Available · Shipped in 3–5 working days

  € 8,17

  Add to cart

10 Nut Available 827116

•

  Standard nut M14x1.5 Piaggio Group · 827116 Available · Shipped in 3–5 working days

  € 2,44

  Add to cart

11 Spacer Available 878948

•

  Spacer Piaggio Group · 878948 Available · Shipped in 3–5 working days

  € 17,33

  Add to cart

12 Gasket Available 878949

•

  Oil seal Piaggio Group · 878949 Available · Shipped in 3–5 working days

  € 2,35

  Add to cart
