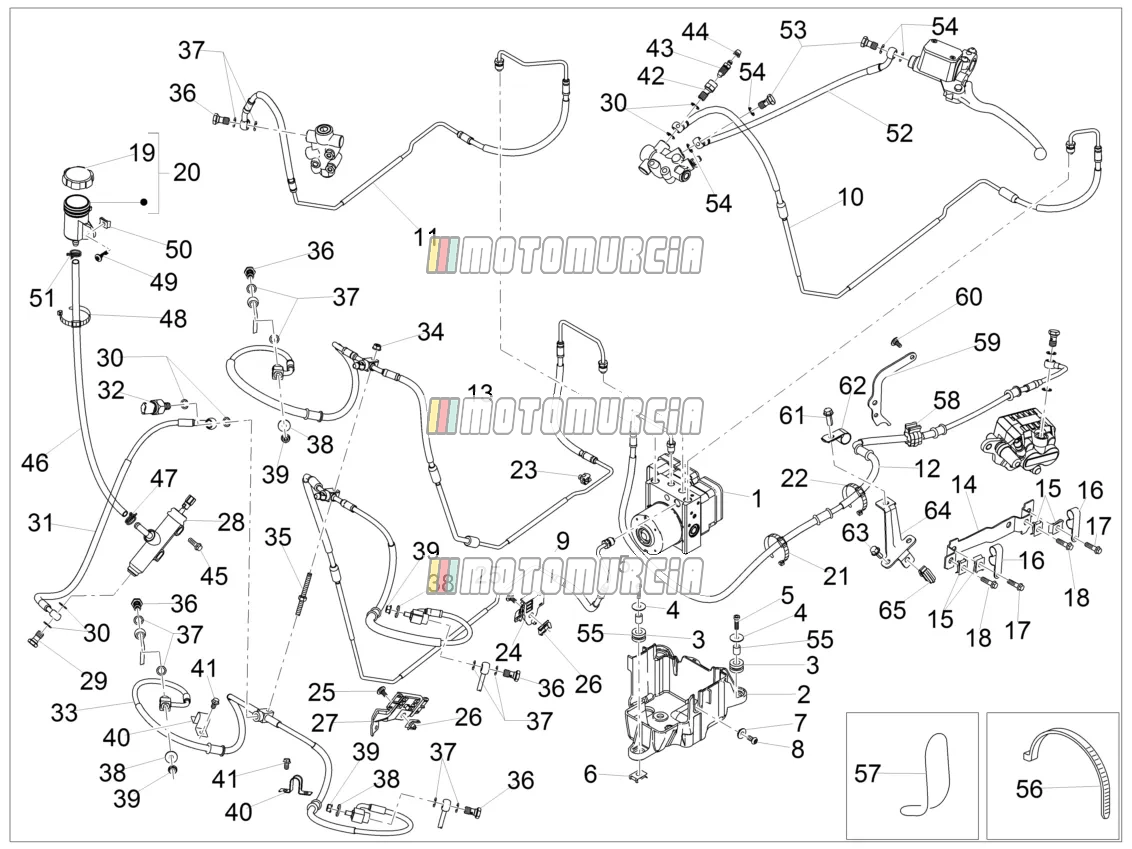

Exploded view — Abs Brake System

‹ Back to model
Piaggio MP3 500 LT Business 2014 Piaggio MP3 500 LT Business 2014
Abs Brake System

Products

1 ABS control unit 1C001261 No longer available
  • 1C001261 ABS control unit
    No longer available
2 ABS control unit support Available 2B000650
3 Cylindrical cable grommet Available 576565
  • Cable Guide Piaggio Group · 576565 · Quantity needed: 3 Available
    € 1,32
4 Washer d6,2x20x1 Available 013092
  • Washer 6,2x20x1 mm Piaggio Group · 013092 · Quantity needed: 3 Available
    € 1,26
5 Screw Available B016774
7 Spacer Backorder AP9100053
  • Sleeve 10x3,5 Piaggio Group · AP9100053 · Quantity needed: 3 Backorder
    € 2,04
8 Screw Backorder 840541
  • Screw Piaggio Group · 840541 · Quantity needed: 3 Backorder
    € 2,24
9 LH clamp brake pipe - ABS 1C001089R No longer available
  • 1C001089R LH clamp brake pipe - ABS
    No longer available
10 ABS front valve brake pipe Available 1C001491R
  • Brake line Piaggio Group · 1C001491R Available
    € 131,51
11 ABS - rear valve brake pipe Backorder 2B001195R
  • Brake line Piaggio Group · 2B001195R Backorder
    € 172,40
12 Rear clamp brake pipe Available 2B000907
  • Brake line, rear Piaggio Group · 2B000907 Available
    € 327,03
  • Brake line Piaggio Group · 1C001490R Available
    € 71,85
13 RH clamp brake pipe - ABS 1C001097R No longer available
  • 1C001097R RH clamp brake pipe - ABS
    No longer available
14 Bracket Available 647825
  • Bracket Piaggio Group · 647825 Available
    € 16,84
15 Clip nuts (M6) Available 254485
  • Sheet nut Piaggio Group · 254485 · Quantity needed: 5 Available
    € 2,04
16 Hose clamp Available 649378
  • Clamp Piaggio Group · 649378 · Quantity needed: 2 Available
    € 12,83
17 Screw Available B016777
18 Screw Available B016792
19 Brake fluid reservoir cover Backorder 498431
  • Lid Piaggio Group · 498431 Backorder
    € 26,63
20 Brake oil tank Available 274598
22 Hose clamp Available 257134
23 Spring Available 179013
  • Clamp Piaggio Group · 179013 · Quantity needed: 2 Available
    € 6,17
24 ABS pipe rear support Backorder 2B000666
25 Screw Available AP8152339
  • Flanged Screw M5x9 Piaggio Group · AP8152339 · Quantity needed: 2 Available
    € 2,35
26 Clip nuts Available 248419
  • Sheet nut M5 Piaggio Group · 248419 · Quantity needed: 2 Available
    € 2,35
27 Pipe support Available 2B000665
28 Complete brake pump D.16 Available 648798
31 Brake hose Available 601781
32 Oil switch Available 640295
33 BREAK PIPES Backorder 58527R
35 Stud bolt Available 2B000952
  • Stud Screw Piaggio Group · 2B000952 Available
    € 7,97
36 Oil pipe screw M10x18 Available 265451
38 Washer Available 013950
  • Washer Piaggio Group · 013950 · Quantity needed: 4 Available
    € 1,43
39 Nut Available 288245
  • Collar nut M6 Piaggio Group · 288245 · Quantity needed: 4 Available
    € 0,99
40 Hose clamp Available 601970
  • Clamp Piaggio Group · 601970 · Quantity needed: 2 Available
    € 5,15
41 Screw Available 969296
42 Joint Available 597033
  • Connector Piaggio Group · 597033 Available
    € 30,17
43 Bleed screw Available 651461
  • Bleeder Screw Piaggio Group · 651461 Available
    € 14,50
44 Cap Available 651462
  • Covering Cap Piaggio Group · 651462 Available
    € 7,53
45 Screw Available 018639
46 Anti-tilting oil-pump tank joint pipe Available 649563
  • Brake line Piaggio Group · 649563 Available
    € 22,14
47 Clamp Available CM001901
  • Clamp Piaggio Group · CM001901 Available
    € 2,04
48 Lock-strap L=180mm Available 145298
49 Screw Available CM178603
50 Clip nuts Available CM017409
  • Sheet nut Piaggio Group · CM017409 Available
    € 1,48
51 Clamp Available CM001913
  • Hose Clamp Piaggio Group · CM001913 Available
    € 1,88
52 BREAK PIPES Available 650718
  • Brake line Piaggio Group · 650718 Available
    € 46,95
54 Washer gasket Available 127927
55 Spacer Available 273288
  • Spacer Piaggio Group · 273288 · Quantity needed: 3 Available
    € 2,18
56 Black hose 180x4,5 Available AP8120416
57 Cable-guide Available AP8221150
  • Cable Guide Piaggio Group · AP8221150 Available
    € 2,77
58 6 - Non return spring L=23 Available CM006908
59 Support bracket Available 1A002618
  • Shackle Piaggio Group · 1A002618 Available
    € 6,41
60 Screw w/ flange M6x65 Available B016762
62 Hose clamp Backorder 675510
  • Clamp Piaggio Group · 675510 Backorder
    € 4,44
63 Screw Available B016774
64 Bracket Backorder 1C000888
  • Bracket Piaggio Group · 1C000888 Backorder
    € 4,69
65 Spring 217280 No longer available
  • 217280 Spring
    No longer available
