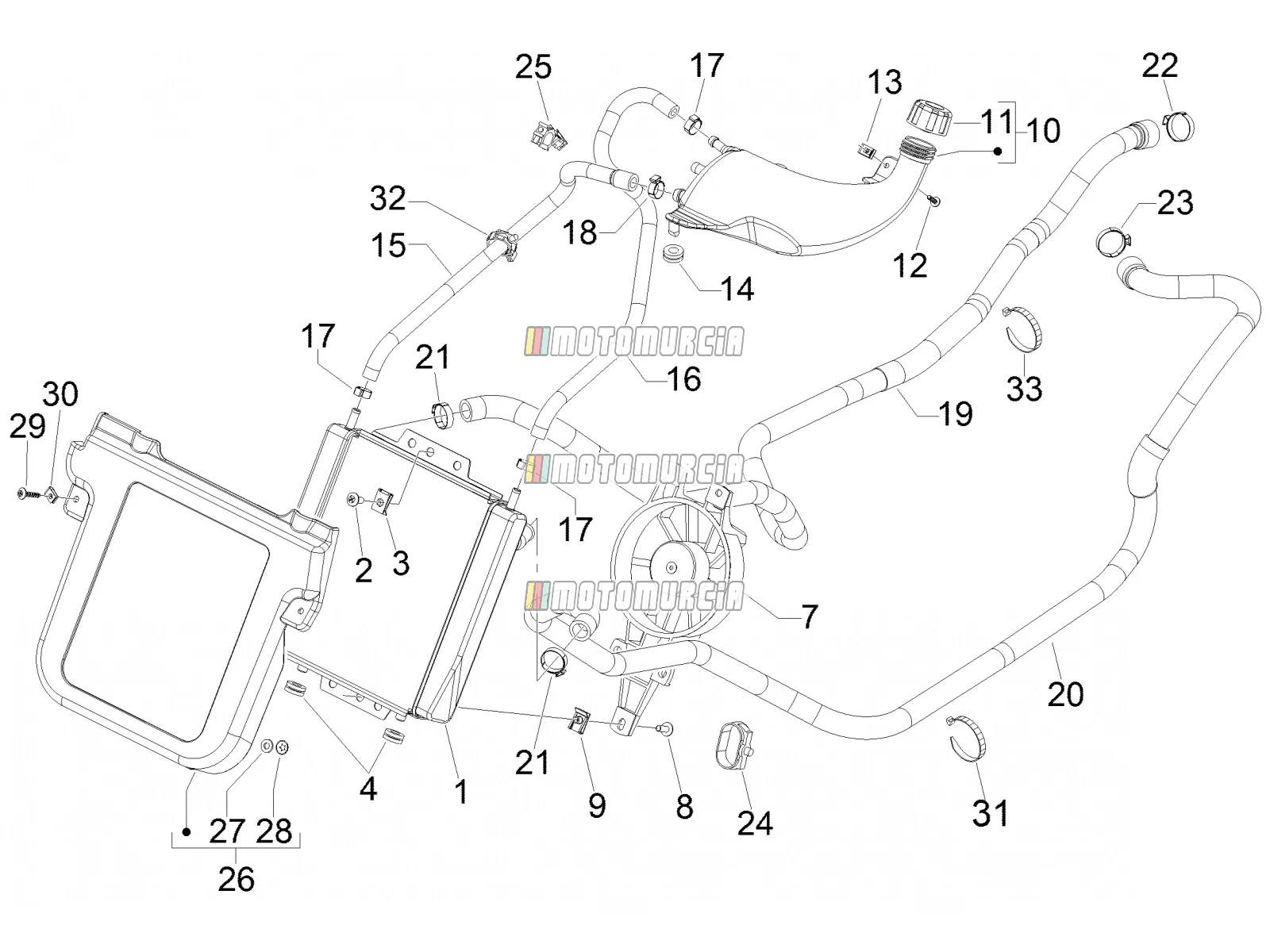

Exploded view — Cooling System

Products

1 Radiator - water cooler Available 1B001908

•

  Radiator Piaggio Group · 1B001908 Available

  € 290,85

  Add to cart

7 Cooling fan Available 58211R

•

  Fan Piaggio Group · 58211R Available

  € 235,59

  Add to cart

8 Screw Available CM179301

•

  Screw M6x16 Piaggio Group · CM179301 · Quantity needed: 3 Available

  € 1,48

  Add to cart

9 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 3 Available

  € 2,04

  Add to cart

10 Coolant tank 653463 No longer available

• 653463 Coolant tank
  No longer available

11 Tank cap Available 623673

•

  Tank Cap Piaggio Group · 623673 Available

  € 19,66

  Add to cart

12 Screw Available CM178604

•

  Sheet Metal Screw length: 18mm Piaggio Group · CM178604 Available

  € 1,45

  Add to cart

13 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 Available

  € 0,99

  Add to cart

14 Damper Available 258904

•

  Buffer Piaggio Group · 258904 · Quantity needed: 2 Available

  € 2,17

  Add to cart

15 Water hose Available 622582

•

  Radiator hose Piaggio Group · 622582 Available

  € 18,31

  Add to cart

16 Water hose Available 622581

•

  Breather Pipe Piaggio Group · 622581 Available

  € 18,66

  Add to cart

17 Clamp Available CM001903

•

  Hose Clamp Piaggio Group · CM001903 · Quantity needed: 3 Available

  € 2,18

  Add to cart

18 Clamp Available CM001904

•

  Clamp Piaggio Group · CM001904 Available

  € 1,72

  Add to cart

19 Water hose 652618 No longer available

• 652618 Water hose
  No longer available

20 Water hose Available 652619

•

  Radiator hose, from cylinder head to radiator Piaggio Group · 652619 Available

  € 107,86

  Add to cart

21 Clamp Available CM001907

•

  Hose Clamp Piaggio Group · CM001907 · Quantity needed: 2 Available

  € 2,19

  Add to cart

22 Clamp Available CM001908

•

  Hose Clamp Piaggio Group · CM001908 Available

  € 2,35

  Add to cart

23 Clamp Available CM001915

•

  Clamp Piaggio Group · CM001915 Available

  € 2,27

  Add to cart

24 Non return spring Available CM006902

•

  Clamp Piaggio Group · CM006902 Available

  € 2,06

  Add to cart

25 10 - Fairlead Available CM006903

•

  Clamp Piaggio Group · CM006903 · Quantity needed: 5 Available

  € 4,51

  Add to cart

26 Complete radiator frame Available 653709

•

  Frame Piaggio Group · 653709 Available

  € 171,74

  Add to cart

27 Spacer Available 479882

•

  Spacer disc Piaggio Group · 479882 · Quantity needed: 10 Available

  € 1,45

  Add to cart

28 Washer Available 230359

•

  Washer Piaggio Group · 230359 · Quantity needed: 10 Available

  € 1,22

  Add to cart

29 Screw Available 259349

•

  Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 2 Available

  € 0,99

  Add to cart

31 Hose clamp Available 257134

•

  Cable Ties length: 27,7cm Piaggio Group · 257134 Available

  € 0,99

  Add to cart

32 Non return spring Available CM017808

•

  Clip Piaggio Group · CM017808 · Quantity needed: 2 Available

  € 3,07

  Add to cart

33 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 · Quantity needed: 2 Available

  € 1,43

  Add to cart
