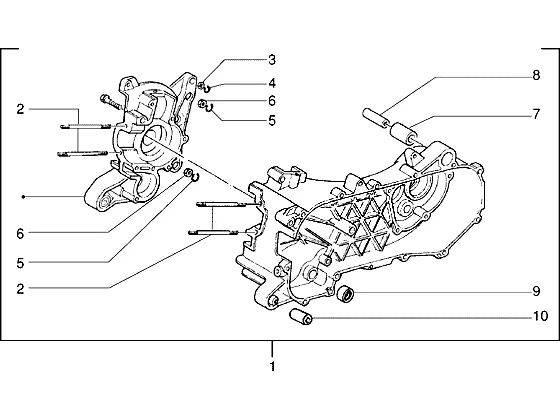

Exploded view — Crankcase

‹ Back to model

Piaggio NRG 1998–2005

Products

1 Crank-case 4336695 No longer available

4336695 Crank-case
No longer available
4345335 Crank-case
No longer available

2 Stud bolt Available 1A003633R

Stud Screw Piaggio Group · 1A003633R · Quantity needed: 4 Available

€ 3,93

3 Nut Available 020006

Standard nut M6 Piaggio Group · 020006 Available

€ 1,52

4 Seeger Available 287223

Toothed Lock Washer Piaggio Group · 287223 Available

€ 0,99

5 Seeger Available 113533

Toothed Lock Washer Piaggio Group · 113533 · Quantity needed: 2 Available

€ 2,35

6 Nut Available 020008

Standard nut M8 Piaggio Group · 020008 · Quantity needed: 2 Available

€ 1,48

7 Shock absorber connection silent block Available 267823

Silentblock Piaggio Group · 267823 Available

€ 4,20

8 Spacer Available 266625

Spacer Piaggio Group · 266625 Available

€ 2,35

9 Water pump mechanical seal Available 4352035

Water Pump Gasket Piaggio Group · 4352035 Available

€ 14,90

10 Silentblock - engine mount Available 266773

Silentblock Piaggio Group · 266773 · Quantity needed: 2 Available

€ 12,37
