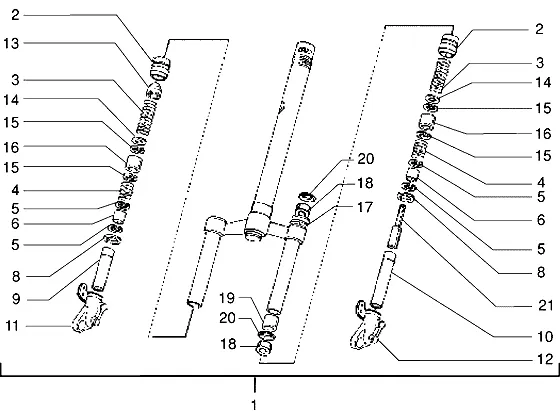

Exploded view — Front Fork

Products

1 Front fork 564286 No longer available

• 564286 Front fork
  No longer available

2 Sleeve 561917 No longer available

• 561917 Sleeve Quantity needed: 2
  No longer available

3 Spring 561925 No longer available

• 561925 Spring Quantity needed: 2
  No longer available

4 Spring 561920 No longer available

• 561920 Spring Quantity needed: 2
  No longer available

5 Seeger Available 561919

•

  Locking Ring Piaggio Group · 561919 · Quantity needed: 4 Available

  € 5,25

  Add to cart

6 Spacer Backorder 274468

•

  Sleeve Piaggio Group · 274468 · Quantity needed: 2 Backorder

  € 45,25

  Add to cart

7 Dust cover 272441 No longer available

• 272441 Dust cover
  No longer available

8 Fork oil seal Available 564236

•

  Fork Seal 30x39/43x12 mm Piaggio Group · 564236 · Quantity needed: 2 Available

  € 33,26

  Add to cart

9 Fork tube Right Available 561916

•

  Front Forks left Piaggio Group · 561916 Available

  € 33,19

  Add to cart

10 LH hub 561915 No longer available

• 561915 LH hub
  No longer available

11 Damper shoe 561654 No longer available

• 561654 Damper shoe
  No longer available

12 Damper shoe Backorder 561653

•

  Fork feet right Piaggio Group · 561653 Backorder

  € 42,23

  Add to cart

13 Pad 561926 No longer available

• 561926 Pad Quantity needed: 2
  No longer available

14 Sleeve plug 561924 No longer available

• 561924 Sleeve plug Quantity needed: 2
  No longer available

15 Seeger Available 561922

•

  Snap-in Ring Piaggio Group · 561922 · Quantity needed: 4 Available

  € 5,25

  Add to cart

16 Bushing 561927 No longer available

• 561927 Bushing Quantity needed: 2
  No longer available

17 Mounting drift 561929 No longer available

• 561929 Mounting drift
  No longer available

18 Nut 562001 No longer available

• 562001 Nut Quantity needed: 2
  No longer available

19 Spacer 561921 No longer available

• 561921 Spacer
  No longer available

20 Nut 494695 No longer available

• 494695 Nut Quantity needed: 2
  No longer available

21 Damper cartridge 561928 No longer available

• 561928 Damper cartridge
  No longer available
