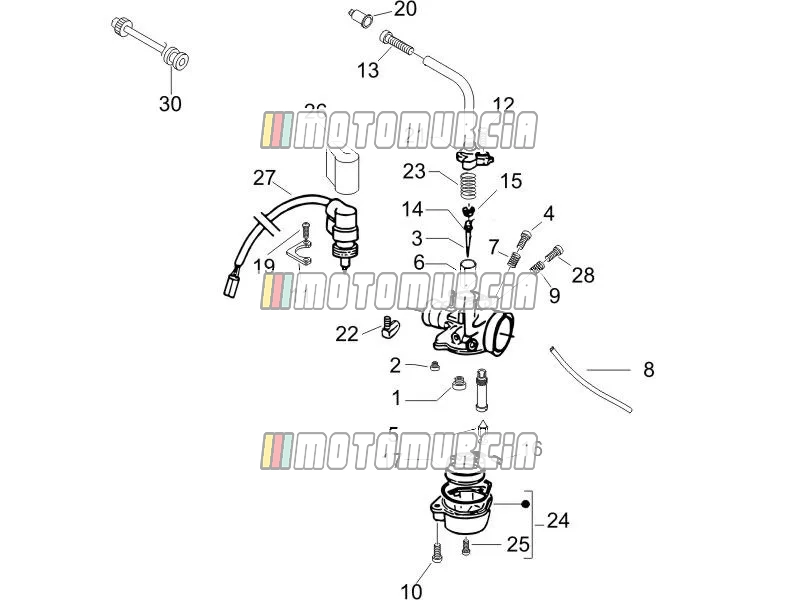

Exploded view — Carburetor's Components

Products

1 Main jet (53) Available CM101704

• • Carburettor version (C364M)
  • Limited version 45 km/h
  • Standard version
  • Country: Europe


  Main jet Size: 53 Piaggio Group · CM101704 Available · Shipped in 3–5 working days

  € 12,15

  Add to cart

2 Idle jet (32) Available CM102103

• • Carburettor version (C364M)
  • Country: Europe
  • Country: Europe


  Idle Jet Piaggio Group · CM102103 Available · Shipped in 3–5 working days

  € 4,34

  Add to cart

3 Conical pin Available CM107510

• • Country: Europe


  Metering Needle Piaggio Group · CM107510 Available · Shipped in 3–5 working days

  € 18,97

  Add to cart

4 Air adjuster screw Available CM107701

• • Carburettor version (C364M)
  • Limited version 45 km/h
  • Year of manufacture: 2009


  Adjusting Screw Piaggio Group · CM107701 Available · Shipped in 3–5 working days

  € 7,82

  Add to cart

5 Fuel closing needle Available CM128502

• • Limited version 25 km/h
  • Year of manufacture: 2009


  Float Needle Piaggio Group · CM128502 Available · Shipped in 3–5 working days

  € 17,16

  Add to cart

6 Gas valve (17.5) Available CM141710

•

  Throttle Slide Piaggio Group · CM141710 Available · Shipped in 3–5 working days

  € 9,15

  Add to cart

7 Spring Available 085285

• • Carburettor version (C364M)


  Spring Piaggio Group · 085285 Available · Shipped in 3–5 working days

  € 1,37

  Add to cart

8 Baffle tube Available 113903

• • Carburettor version (C364M)


  Guide tube Piaggio Group · 113903 Available · Shipped in 3–5 working days

  € 6,92

  Add to cart

9 Spring Available 152608

• • Carburettor version (C364M)


  Spring Piaggio Group · 152608 Available · Shipped in 3–5 working days

  € 1,40

  Add to cart

10 Screw Available 288862

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Screw Piaggio Group · 288862 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 3,36

  Add to cart

11 Plate Available 288863

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Bracket Piaggio Group · 288863 Available · Shipped in 3–5 working days

  € 2,77

  Add to cart

12 Screw Available 288865

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Screw Piaggio Group · 288865 Available · Shipped in 3–5 working days

  € 1,40

  Add to cart

13 Screw Available 288868

• • From chassis 9H433718


  Screw Piaggio Group · 288868 Available · Shipped in 3–5 working days

  € 6,73

  Add to cart

14 Seeger Available 288872

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Tapered Needle Clip Dell Orto Piaggio Group · 288872 Available · Shipped in 3–5 working days

  € 1,59

  Add to cart

15 Conical pin clip Available 288873

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Tapered Needle Clip Dell Orto Piaggio Group · 288873 Available · Shipped in 3–5 working days

  € 2,59

  Add to cart

16 Float pin Available 288881

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Pin Piaggio Group · 288881 Available · Shipped in 3–5 working days

  € 2,06

  Add to cart

17 Float Available 482916

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Float Dell Orto Piaggio Group · 482916 Available · Shipped in 3–5 working days

  € 19,48

  Add to cart

19 Screw Available 289575

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Screw Piaggio Group · 289575 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,41

  Add to cart

20 Throttle cable cap Available 875551

•

  Bonnet Piaggio Group · 875551 Available · Shipped in 3–5 working days

  € 8,74

  Add to cart

21 Gas valve cover Available 431654

• • Carburettor version (C364M)


  Lid, Dell Orto Piaggio Group · 431654 Available · Shipped in 3–5 working days

  € 5,51

  Add to cart

22 Complete oil valve Available 436206

•

  Oil Valve Piaggio Group · 436206 Available · Shipped in 3–5 working days

  € 13,79

  Add to cart

23 Valve gas return spring Available 482942

• • Carburettor version (C364M)
  • Year of manufacture: 2009


  Spring Piaggio Group · 482942 Available · Shipped in 3–5 working days

  € 1,69

  Add to cart

24 Fuel chamber Available 484704

• • Carburettor version (C364M)
  • Country: Austria
  • Country: Denmark
  • Country: Spain


  Float Chamber Dell Orto Piaggio Group · 484704 Available · Shipped in 3–5 working days

  € 26,45

  Add to cart

25 Screw Available 432456

• • Carburettor version (C364M)


  Screw Piaggio Group · 432456 Available · Shipped in 3–5 working days

  € 8,91

  Add to cart

26 Auto choke Cover Available 485671

•

  Covering Cap Piaggio Group · 485671 Available · Shipped in 3–5 working days

  € 10,16

  Add to cart

27 Starter plunger Available CM105905

• • Carburettor version (C364M)


  Choke elektrisch, Dell Orto Piaggio Group · CM105905 Available · Shipped in 3–5 working days

  € 174,53

  Add to cart

28 Gas valve adj.screw Available 828074

• • Carburettor version (C364M)
  • Year of manufacture: 2009
  • Country: Austria
  • Country: Denmark
  • Country: Spain


  Adjusting Screw Piaggio Group · 828074 Available · Shipped in 3–5 working days

  € 11,82

  Add to cart

29 Nut Available 120074

•

  Standard nut Piaggio Group · 120074 Available · Shipped in 3–5 working days

  € 2,06

  Add to cart

30 Throttle transmiss. Available 1C003541

•

  Throttle cable length: 77,5cm Piaggio Group · 1C003541 Available · Shipped in 3–5 working days

  € 42,74

  Add to cart
