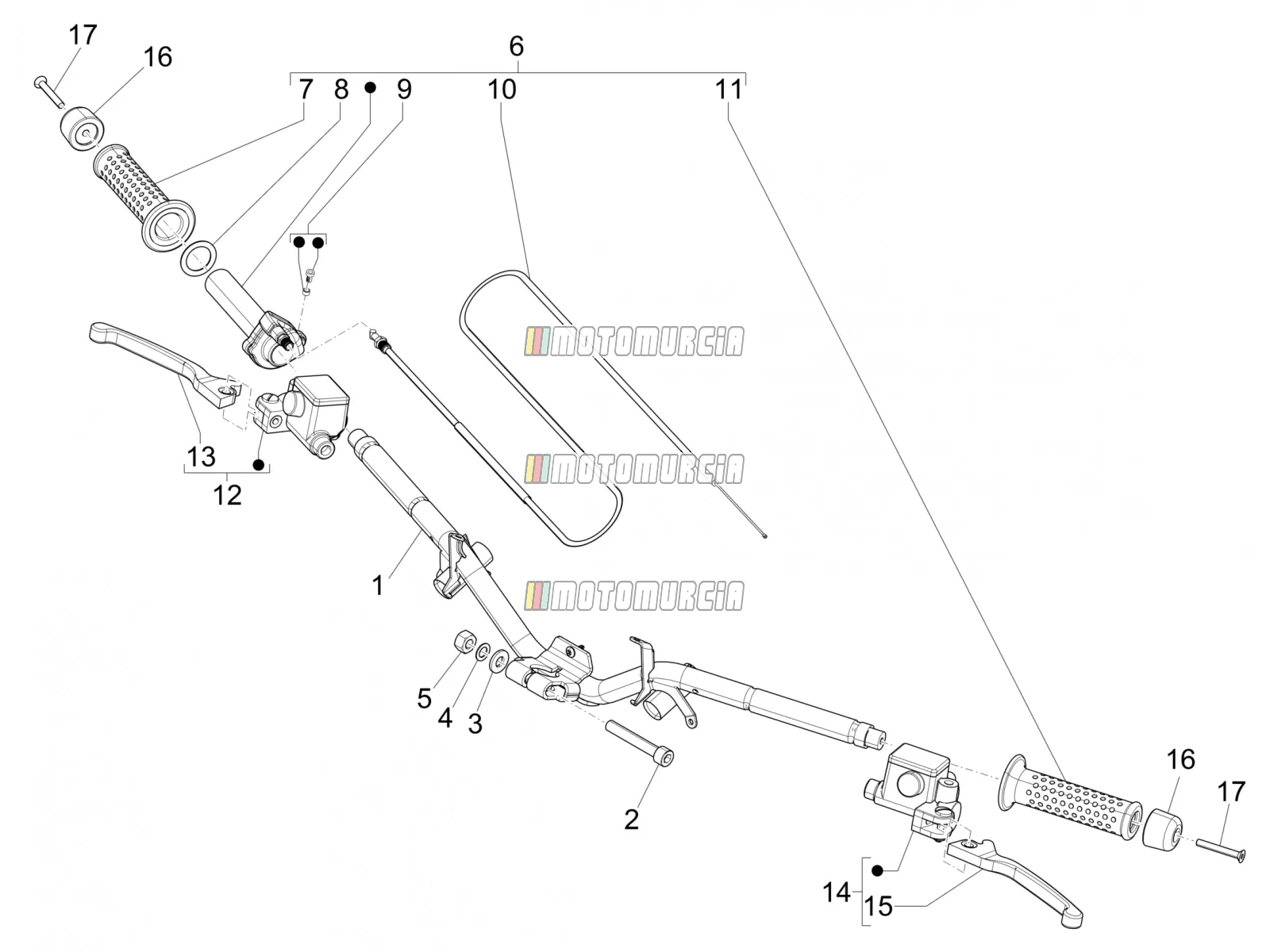

Exploded view — Handlebars - Master Cil.

‹ Back to model
Piaggio NRG Power DD 2007 Piaggio NRG Power DD 2007
Handlebars - Master Cil.

Products

1 Handlebar Backorder 6745165
  • Handlebar Piaggio Group · 6745165 Backorder · Shipped in 2–4 weeks
    € 225,52
  • Handlebar Piaggio Group · 6550825 Available · Shipped in 3–5 working days
    € 168,35
2 Screw Available 655554
  • Screw M10x65 Piaggio Group · 655554 Available · Shipped in 3–5 working days
    € 2,27
3 Washer Available 178790
  • Washer 22x10,3x2,5 mm Piaggio Group · 178790 Available · Shipped in 3–5 working days
    € 1,74
4 Washer (spring) Available 012543
  • Washer Piaggio Group · 012543 Available · Shipped in 3–5 working days
    € 1,43
5 Nut Available 015330
  • Standard nut Piaggio Group · 015330 Available · Shipped in 3–5 working days
    € 3,84
6 Throttle grip CM060964 No longer available
  • CM060964 Throttle grip
    No longer available
  • Throttle grip Piaggio Group · CM060989 Available · Shipped in 3–5 working days
    € 50,83
7 Grip Right Available 274491
8 Ring 38,3x27x1,2 Available 562923
  • Washer Piaggio Group · 562923 Available · Shipped in 3–5 working days
    € 0,99
9 Screw Available 123394
  • Screw Piaggio Group · 123394 Available · Shipped in 3–5 working days
    € 2,86
10 Throttle transmiss. Available 95923R
11 Grip Left Available 274489
12 Brake hydraulic pump Right Available CM074901
14 Brake hydraulic pump Available CM074801
15 Brake lever Available 497042
  • Brake Lever silver Piaggio Group · 497042 Available · Shipped in 3–5 working days
    € 13,37

    Alternatives from other brands

    Lever Silver 2torq · AGDS611 Available · Shipped in 4–7 working days
    € 6,95
    LEVER Domino · 02107930040 Backorder · Shipped in 2–5 weeks
    € 8,55
16 Handlebar weight Available 271433
17 Screw Available 1B006376
