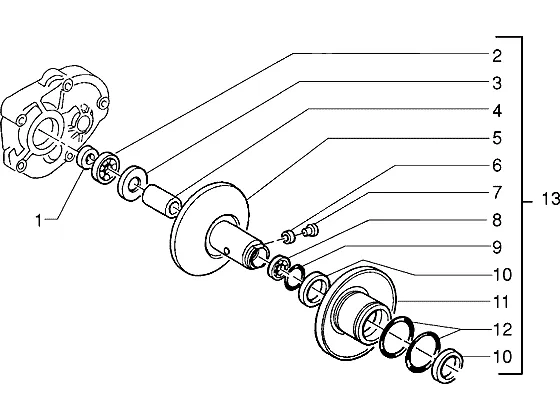

Exploded view — Driven Half Pulley

Products

1 Secondary pulley 4805775 No longer available

• 4805775 Secondary pulley
  No longer available

2 Spacer 435993 No longer available

• 435993 Spacer
  No longer available

4 Cup 289184 No longer available

• 289184 Cup
  No longer available

5 Spacer 286183 No longer available

• 286183 Spacer
  No longer available

6 Sec.fixed semi-sheave bush 4780745 No longer available

• 4780745 Sec.fixed semi-sheave bush
  No longer available

7 Guide roller 285358 No longer available

• 285358 Guide roller Quantity needed: 3
  No longer available

8 Pin 487155 No longer available

• 487155 Pin Quantity needed: 3
  No longer available

9 Bearing 285007 No longer available

• 285007 Bearing
  No longer available

10 Gasket Available 289386

•

  Gasket Piaggio Group · 289386 Available

  € 0,99

  Add to cart

11 Oil seal Available 431089

•

  Oil seal Piaggio Group · 431089 · Quantity needed: 2 Available

  € 9,66

  Add to cart

12 Pulley, half 4780725 No longer available

• 4780725 Pulley, half
  No longer available

13 O-Ring Available 430585

•

  Oil seal Piaggio Group · 430585 · Quantity needed: 2 Available

  € 1,32

  Add to cart
