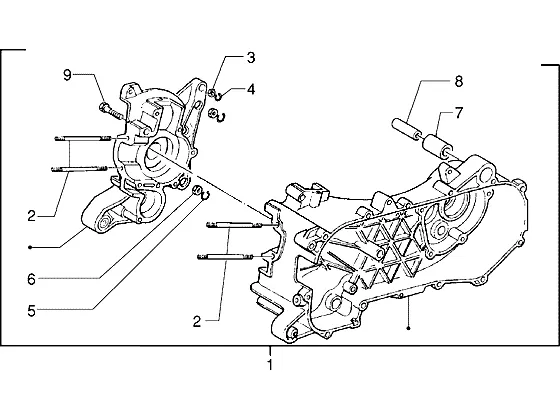

Exploded view — Crankcase

‹ Back to model

Piaggio Sfera RST 80 1998–2005

Piaggio Sfera RST 80 1998–2005

Crankcase

Products

1 Crank-case 4336725 No longer available

4336725 Crank-case
No longer available

2 Stud bolt 288391 No longer available

288391 Stud bolt Quantity needed: 4
No longer available

3 Nut Available 020006

Standard nut M6 Piaggio Group · 020006 Available

€ 1,52

4 Seeger Available 287223

Toothed Lock Washer Piaggio Group · 287223 Available

€ 0,99

5 Seeger Available 113533

Toothed Lock Washer Piaggio Group · 113533 Available

€ 2,35

6 Nut Available 020008

Standard nut M8 Piaggio Group · 020008 Available

€ 1,48

7 Shock absorber connection silent block Available 267823

Silentblock Piaggio Group · 267823 Available

€ 4,20

8 Spacer Available 266625

Spacer Piaggio Group · 266625 Available

€ 2,35

9 Screw Available B017632

Flanged Screw M6x45 Piaggio Group · B017632 · Quantity needed: 8 Available

€ 2,77
