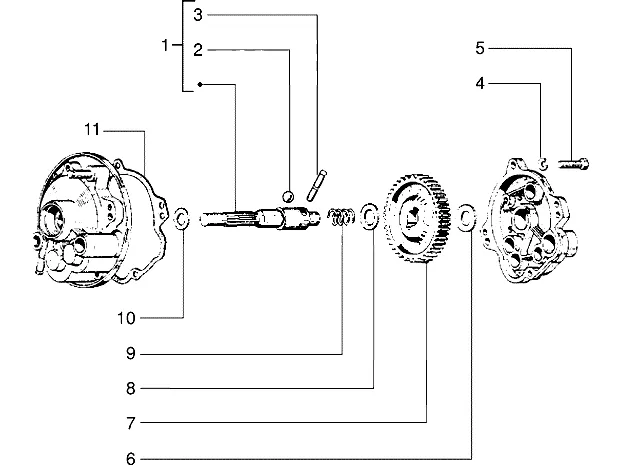

Exploded view — Components Parts Of Rear Hub

Products

1 Wheel shaft 132903 No longer available

• 132903 Wheel shaft
  No longer available

2 Ball 174184 No longer available

• 174184 Ball
  No longer available

3 Pin Backorder 131503

•

  Pin Piaggio Group · 131503 Backorder

  € 7,93

  Add to cart

4 Washer (spring) Available 006976

•

  Snap-in Ring 12x6,4x0,5 mm Piaggio Group · 006976 · Quantity needed: 4 Available

  € 1,79

  Add to cart

5 Screw Available 031091

•

  Hexagon Screw M6x22 Piaggio Group · 031091 · Quantity needed: 4 Available

  € 0,99

  Add to cart

6 Shoulder washer 131514 No longer available

• 131514 Shoulder washer
  No longer available

7 Toothed wheel 136951 No longer available

• 136951 Toothed wheel
  No longer available

8 Shoulder washer 131512 No longer available

• 131512 Shoulder washer
  No longer available

9 Spring 131502 No longer available

• 131502 Spring
  No longer available

10 Shoulder washer 131513 No longer available

• 131513 Shoulder washer
  No longer available

11 Gasket 482552 No longer available

• 482552 Gasket
  No longer available
