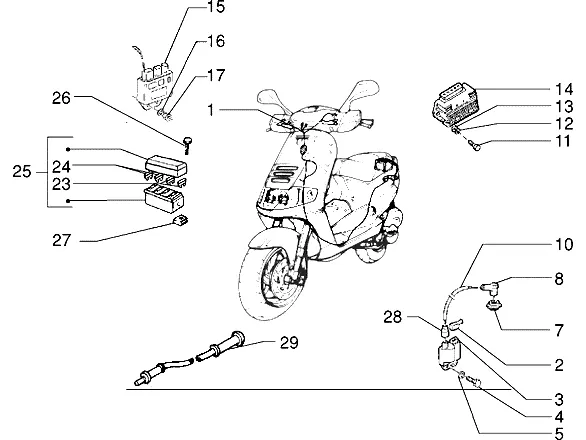

Exploded view — Electrical Devices

Products

1 Main wiring harness 580850 No longer available

• 580850 Main wiring harness
  No longer available

3 Ignition coil Available 826115

•

  Ignition Coil, with cable (can be unscrewed) Piaggio Group · 826115 Available

  € 127,90

  Add to cart

4 Screw Available 031056

•

  Screw M5x12 Piaggio Group · 031056 · Quantity needed: 2 Available

  € 1,25

  Add to cart

5 Washer (spring) Available 016405

•

  Spring Washer Piaggio Group · 016405 · Quantity needed: 2 Available

  € 1,84

  Add to cart

7 Spacer 292590 No longer available

• 292590 Spacer
  No longer available

8 Spark plug cap Available 1D000275

•

  Spark Plug Connector Piaggio Group · 1D000275 Available

  € 48,05

  Add to cart

10 H.V. cable Available 080341

•

  Ignition Lead Piaggio Group · 080341 Available

  € 3,88

  Add to cart

11 Screw Available 015558

•

  Screw M16x16 Piaggio Group · 015558 · Quantity needed: 2 Available

  € 1,45

  Add to cart

12 Washer Available 016406

•

  Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 2 Available

  € 1,79

  Add to cart

13 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 · Quantity needed: 2 Available

  € 1,84

  Add to cart

14 Voltage regulator Available 292033

•

  Regulator Piaggio Group · 292033 Available

  € 165,12

  Add to cart

15 CDI unit Available 1R000003

•

  CDI Piaggio Group · 1R000003 Available

  € 293,41

  Add to cart

16 Washer 016686 No longer available

• 016686 Washer Quantity needed: 2
  No longer available

17 Nut Available 241937

•

  Standard nut Piaggio Group · 241937 · Quantity needed: 2 Available

  € 0,99

  Add to cart

23 Fuse (7,5A) Available 252945

•

  Fuse 7,5 A Piaggio Group · 252945 · Quantity needed: 2 Available

  € 2,86

  Add to cart

24 Fuse (10A) Available 292507

•

  Fuse 10 A Piaggio Group · 292507 · Quantity needed: 2 Available

  € 2,86

  Add to cart

25 Fuse holder 580214 No longer available

• 580214 Fuse holder
  No longer available

26 Screw Available 259349

•

  Screw 4,2x13 mm Piaggio Group · 259349 Available

  € 0,99

  Add to cart

27 Clip nuts Available CM017409

•

  Sheet nut Piaggio Group · CM017409 Available

  € 1,48

  Add to cart

28 Insulating cap Available 231571

•

  Cap Piaggio Group · 231571 Available

  € 3,84

  Add to cart

29 L.t. cable 292516 No longer available

• 292516 L.t. cable
  No longer available
