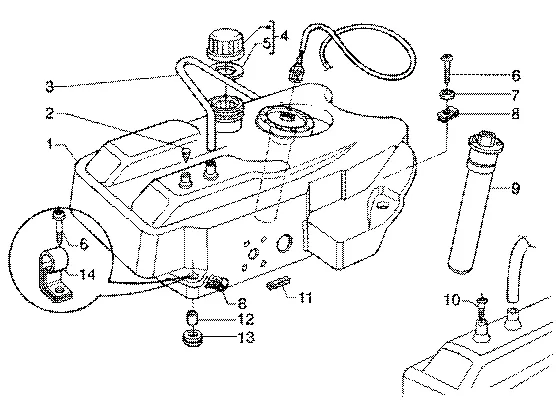

Exploded view — Fuel Tank

Products

1 TANK Backorder 577525

•

  Petrol Tank Piaggio Group · 577525 Backorder

  € 159,57

  Add to cart

2 Spacer (rubber) 574850 No longer available

• 574850 Spacer (rubber)
  No longer available

3 Tank breather pipe Ø5x10 L.1060 (L=1060) Available CM001432

•

  Breather Pipe length: 1,06m Piaggio Group · CM001432 Available

  € 13,29

  Add to cart

4 Plug Available 259832

•

  Tank Cap Piaggio Group · 259832 Available

  € 11,42

  Add to cart

5 Tank cover gasket Available 258160

•

  Filler cap seal Piaggio Group · 258160 Available

  € 5,38

  Add to cart

6 Screw (M6x22) Available CM179302

•

  Screw M6x22 Piaggio Group · CM179302 · Quantity needed: 4 Available

  € 1,48

  Add to cart

7 Washer Available 179575

•

  Washer Piaggio Group · 179575 · Quantity needed: 2 Available

  € 1,52

  Add to cart

8 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 4 Available

  € 2,04

  Add to cart

9 Level gauge 580322 No longer available

• 580322 Level gauge
  No longer available

10 Screw Available 018603

•

  Screw 3,6x12 mm Piaggio Group · 018603 Available

  € 0,99

  Add to cart

11 Gasket Available 116498

•

  Gasket Piaggio Group · 116498 · Quantity needed: 2 Available

  € 4,08

  Add to cart

12 Spacer Available 257302

•

  Spacer Piaggio Group · 257302 · Quantity needed: 2 Available

  € 0,99

  Add to cart

13 Damper Available 257301

•

  Buffer Piaggio Group · 257301 · Quantity needed: 2 Available

  € 2,48

  Add to cart

14 Clamp Available 879888

•

  Clamp Piaggio Group · 879888 Available

  € 8,91

  Add to cart
•

  Clamp Piaggio Group · 271451 Available

  € 3,21

  Add to cart
