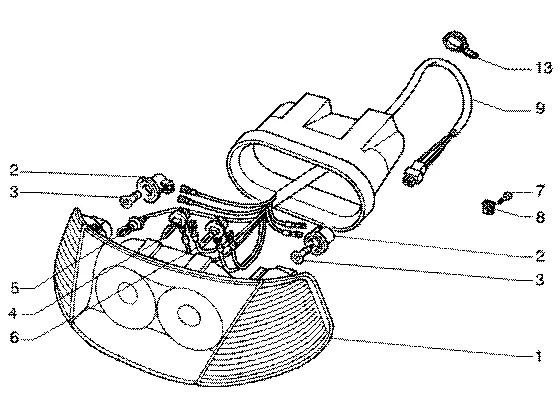

Exploded view — Headlamp

Products

1 Headlight Available 294504

•

  Head Lights Piaggio Group · 294504 Available

  € 208,82

  Add to cart
• 580021 Headlight
  No longer available

2 Lampholder Available 250521

•

  Lamp socket Piaggio Group · 250521 · Quantity needed: 2 Available

  € 11,25

  Add to cart

3 Bulb (BA15S 12V 10W) Available 181746

•

  Bulbs Bulb, 12 V, 10 W, BA15s Piaggio Group · 181746 · Quantity needed: 2 Available

  € 3,17

  Add to cart

4 Bulb (12V 3W) Available 294131

•

  Bulbs Bulb, 12 V, 3 W Piaggio Group · 294131 Available

  € 2,88

  Add to cart
•

  Bulbs Bulb, 12 V, 5 W, wedge base Piaggio Group · 2920225 Available

  € 3,42

  Add to cart

5 Bulb (H7 55W 12V) Available 294353

•

  Bulbs Halogen, H7, 12 V, 55 W Piaggio Group · 294353 Available

  € 37,12

  Add to cart

6 Lamp H1 12V-55W Available 580141

•

  Bulbs Halogen, H1, 12 V, 55 W Piaggio Group · 580141 Available

  € 18,73

  Add to cart
•

  Bulbs Halogen, H3, 12 V, 55 W Piaggio Group · 294278 Available

  € 8,89

  Add to cart

7 Screw (M6x16) Available 575249

•

  Screw M6 Piaggio Group · 575249 · Quantity needed: 2 Available

  € 0,99

  Add to cart

8 Plate 251420 No longer available

• 251420 Plate Quantity needed: 2
  No longer available

9 Cable harn. 580418 No longer available

• 580418 Cable harn.
  No longer available

13 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available

  € 1,43

  Add to cart
