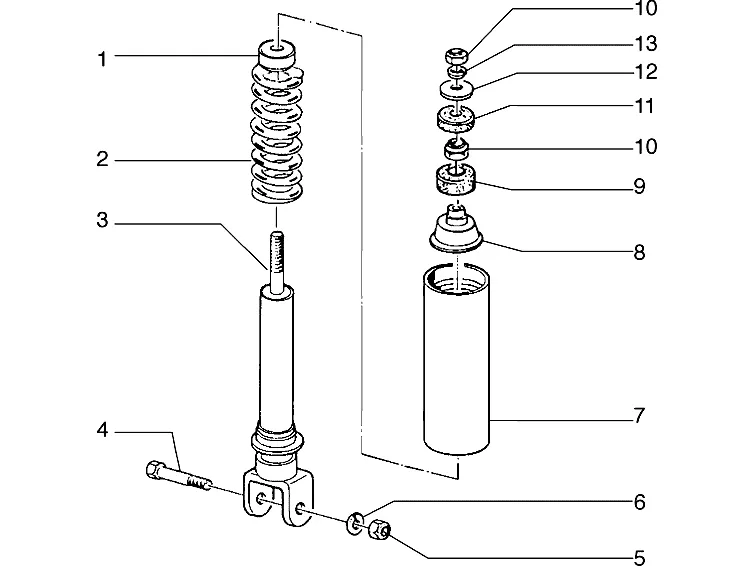

Exploded view — Rear Shock Absorber

‹ Back to model

Piaggio Typhoon 125 X 2T 1998–2005

Products

1 Buffer Available 057894

Buffer Piaggio Group · 057894 Available

€ 4,04

2 Supp. spring 560281 No longer available

560281 Supp. spring
No longer available

3 Shock absorber 564965 No longer available

564965 Shock absorber
No longer available

4 Screw Available 268158

Flanged Screw M10 Piaggio Group · 268158 Available

€ 2,18

5 Nut Available 002440

Standard nut M10 Piaggio Group · 002440 Available

€ 1,11

6 Washer Available 016626

Washer 10,4x18x2 mm Piaggio Group · 016626 Available

€ 1,44

7 Sleeve Backorder 268705

Protective Cover Piaggio Group · 268705 Backorder

€ 12,10

8 Disc 2693943 No longer available

2693943 Disc
No longer available

9 Pad Available 174874

Vibrations Damper Piaggio Group · 174874 Available

€ 4,15

10 Nut Available 021108

Standard nut Piaggio Group · 021108 · Quantity needed: 2 Available

€ 1,48

11 Pad Available 174085

Vibrations Damper for shock absorber Piaggio Group · 174085 Available

€ 3,32

12 Washer Available 267038

Washer Piaggio Group · 267038 Available

€ 1,29

13 Washer (spring) Available 016408

Spring Washer 13,75x8,15x4,5 mm Piaggio Group · 016408 Available

€ 1,84
