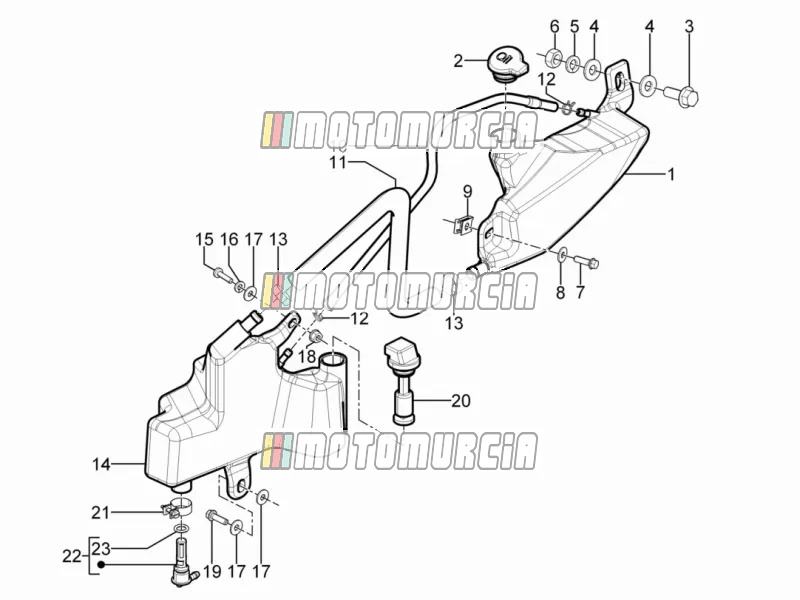

Exploded view — Oil Tank

Products

1 Oil tank Backorder 664427

•

  Oil Tank Piaggio Group · 664427 Backorder

  € 44,79

  Add to cart
• 657477 Oil tank
  No longer available

2 Cap oil filler Available 1B006441

•

  Oil Tank Cap Piaggio Group · 1B006441 Available

  € 7,44

  Add to cart

3 Screw Available 967384

•

  Screw Piaggio Group · 967384 Available

  € 8,57

  Add to cart

4 Washer Available 178790

•

  Washer 22x10,3x2,5 mm Piaggio Group · 178790 · Quantity needed: 2 Available

  € 1,74

  Add to cart

5 Washer (spring) Available 016410

•

  Washer 17,6x11x2,5 mm Piaggio Group · 016410 Available

  € 0,99

  Add to cart

6 Nut M10 Available 893087

•

  Standard nut Piaggio Group · 893087 Available

  € 7,38

  Add to cart

8 Washer Available 013880

•

  Washer 6,5x16x1,5 mm Piaggio Group · 013880 Available

  € 0,99

  Add to cart

9 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

10 Flexible pipe 4x9x470 CM006124 No longer available

• CM006124 Flexible pipe 4x9x470
  No longer available

11 Flexible pipe 11x16x240 Available CM003906

•

  Oil Hose, 11x16, length: 24,0cm Piaggio Group · CM003906 Available

  € 7,55

  Add to cart

12 Clamp Available CM002903

•

  Clamp Piaggio Group · CM002903 · Quantity needed: 2 Available

  € 0,99

  Add to cart

13 Clamp Available CM001921

•

  Clamp Piaggio Group · CM001921 · Quantity needed: 2 Available

  € 4,09

  Add to cart

14 Lower oil tank Available 890096

•

  Oil Tank Piaggio Group · 890096 Available

  € 60,66

  Add to cart

15 Screw Available 015856

•

  Screw M5x21 Piaggio Group · 015856 Available

  € 0,99

  Add to cart

16 Washer Available 016406

•

  Washer 6,4x11,8x1 mm Piaggio Group · 016406 Available

  € 1,79

  Add to cart

18 Nut Available 288245

•

  Collar nut M6 Piaggio Group · 288245 Available

  € 0,99

  Add to cart

19 Screw Available 018639

•

  Flanged Screw M6x20 Piaggio Group · 018639 Available

  € 2,77

  Add to cart

20 Oil reserve indicator Available 860788

•

  Oil level guage Piaggio Group · 860788 Available

  € 44,70

  Add to cart

21 Clamp Available 879888

•

  Clamp Piaggio Group · 879888 Available

  € 8,91

  Add to cart

22 Complete coupling Available 574362

•

  Nozzle Piaggio Group · 574362 Available

  € 6,20

  Add to cart

23 O-Ring Available 196868

•

  Gasket Piaggio Group · 196868 Available

  € 3,36

  Add to cart
