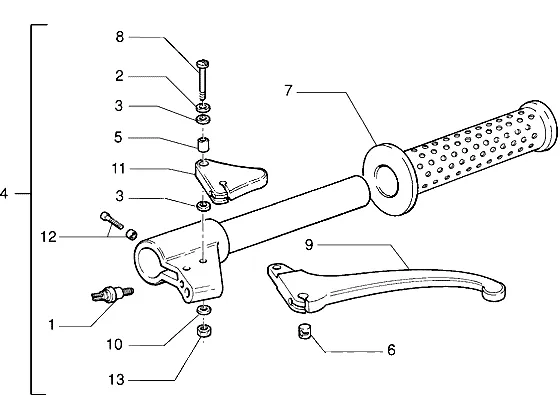

Exploded view — Handlebars Component Parts

Products

1 Brake light switch Available 580953

•

  Stop light switch Piaggio Group · 580953 Available

  € 9,04

  Add to cart

2 Washer Available 003058

•

  Washer 15x8,4x1,5 mm Piaggio Group · 003058 Available

  € 1,84

  Add to cart

3 Washer 267752 No longer available

• 267752 Washer
  No longer available

4 Pipe 560525 No longer available

• 560525 Pipe
  No longer available
• 274042 Pipe
  No longer available

5 Spacer 265944 No longer available

• 265944 Spacer
  No longer available

6 Pin 177073 No longer available

• 177073 Pin
  No longer available

7 Grip Left 273871 No longer available

• 273871 Grip Left
  No longer available

8 Screw 265943 No longer available

• 265943 Screw
  No longer available

9 Brake lever 269070 No longer available

• 269070 Brake lever
  No longer available

10 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 Available

  € 1,84

  Add to cart

11 Starter control lever 274030 No longer available

• 274030 Starter control lever
  No longer available

12 Screw Available 123394

•

  Screw Piaggio Group · 123394 Available

  € 2,86

  Add to cart

13 Nut Available 020105

•

  Standard nut Piaggio Group · 020105 Available

  € 1,88

  Add to cart
