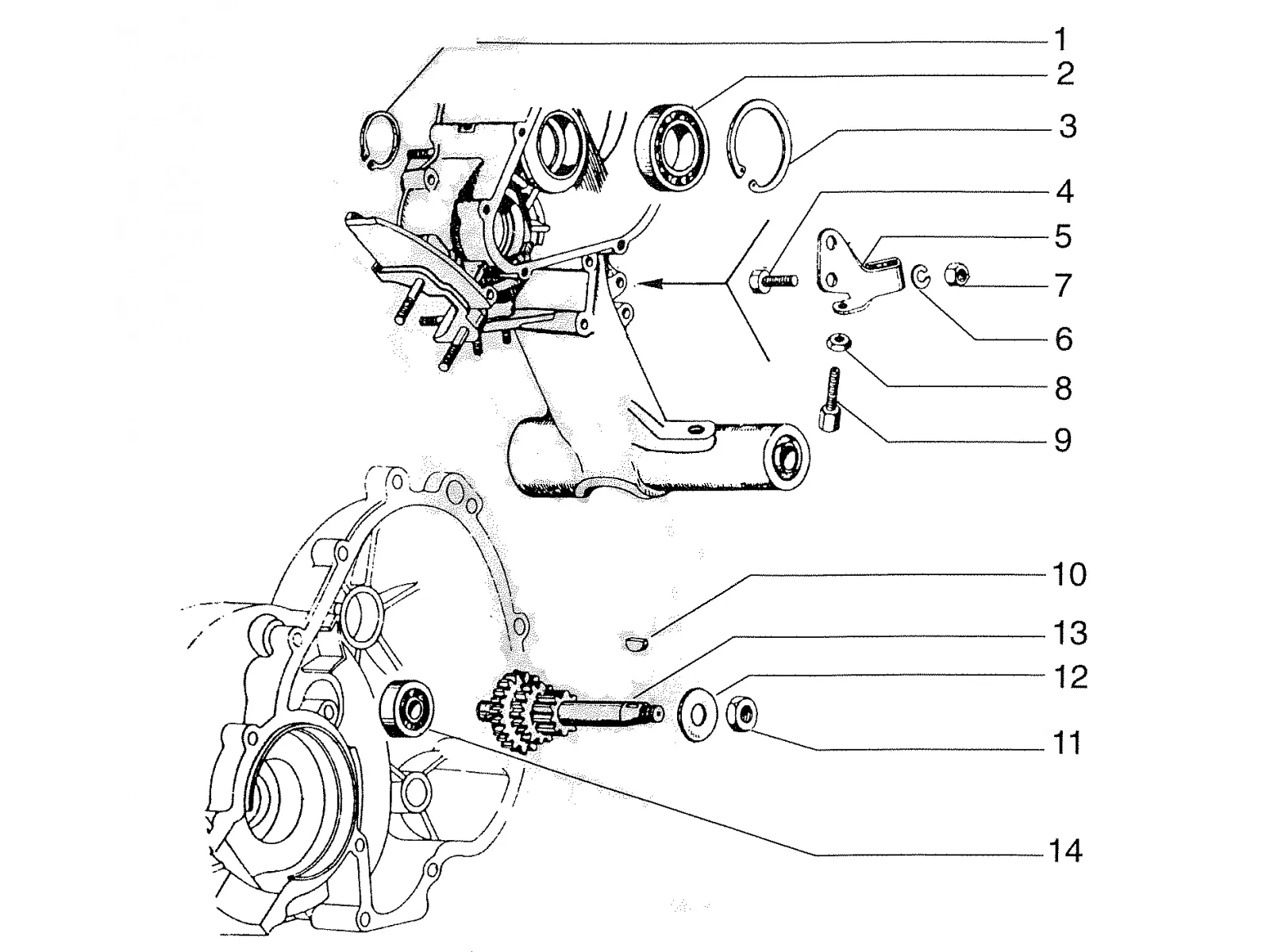

Exploded view — Gear Box

Products

1 Seeger Available 006425

•

  Snap-in Ring Piaggio Group · 006425 Available

  € 1,88

  Add to cart

2 Bearing Available 007130

•

  Ball bearing 16005 TN9, 25x47x8 mm Piaggio Group · 007130 Available

  € 33,88

  Add to cart

3 Seeger Available 006647

•

  Circlip Ø 47,00 mm Piaggio Group · 006647 Available

  € 1,29

  Add to cart

4 Screw 015507 No longer available

• 015507 Screw
  No longer available

5 PLATE 288118 No longer available

• 288118 PLATE
  No longer available

6 Washer Available 016407

•

  Washer Piaggio Group · 016407 Available

  € 0,99

  Add to cart

7 Nut Available 020107

•

  Standard nut Piaggio Group · 020107 Available

  € 1,67

  Add to cart

8 Nut Available 020207

•

  Standard nut Piaggio Group · 020207 Available

  € 1,88

  Add to cart

9 ADJUSTING SCREW 267004 No longer available

• 267004 ADJUSTING SCREW
  No longer available

10 Transmission key Available 011753

•

  Alternator wedge, 7x3x3 Piaggio Group · 011753 Available

  € 4,45

  Add to cart

11 Nut Available 001508

•

  Standard nut Piaggio Group · 001508 Available

  € 3,42

  Add to cart

12 Washer Available 244297

•

  Locking Washer Piaggio Group · 244297 Available

  € 2,27

  Add to cart

13 GEAR CLUSTER 430564 No longer available

• 430564 GEAR CLUSTER
  No longer available
• 112377 GEAR
  No longer available
• 287181 GEAR
  No longer available

14 Bearing Available 007035

•

  Ball bearing 6200, 10x30x9 mm Piaggio Group · 007035 Available

  € 17,54

  Add to cart
