Exploded view — Meter Combination - Cruscotto

‹ Back to model

Piaggio X Evo 250 2007

Piaggio X Evo 250 2007

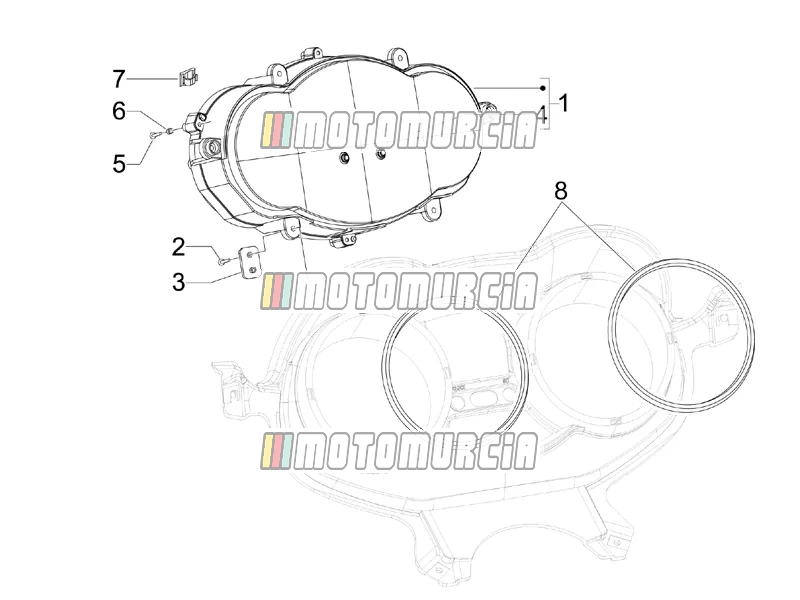

Meter Combination - Cruscotto

Products

1 Dashboard Available 640659

Instrument Cluster Piaggio Group · 640659 Available

€ 331,90

2 Screw Available 015585

Thread Screw M5x12 Piaggio Group · 015585 · Quantity needed: 4 Available

€ 1,39

3 Bracket Backorder 621364

Bracket Piaggio Group · 621364 · Quantity needed: 2 Backorder

€ 4,02

4 Dashboard lens Available 640434

Cover, with buttons Piaggio Group · 640434 Available

€ 72,36

5 Screw Available 270793

Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 6 Available

€ 0,99

6 Spacer Available 259828

Spacer Piaggio Group · 259828 · Quantity needed: 2 Available

€ 2,63

7 Spring clamp Available 577594

Clip Piaggio Group · 577594 · Quantity needed: 2 Available

€ 5,78

8 Instrument frame Available 623250

Headlight Cover Piaggio Group · 623250 · Quantity needed: 2 Available

€ 33,13
