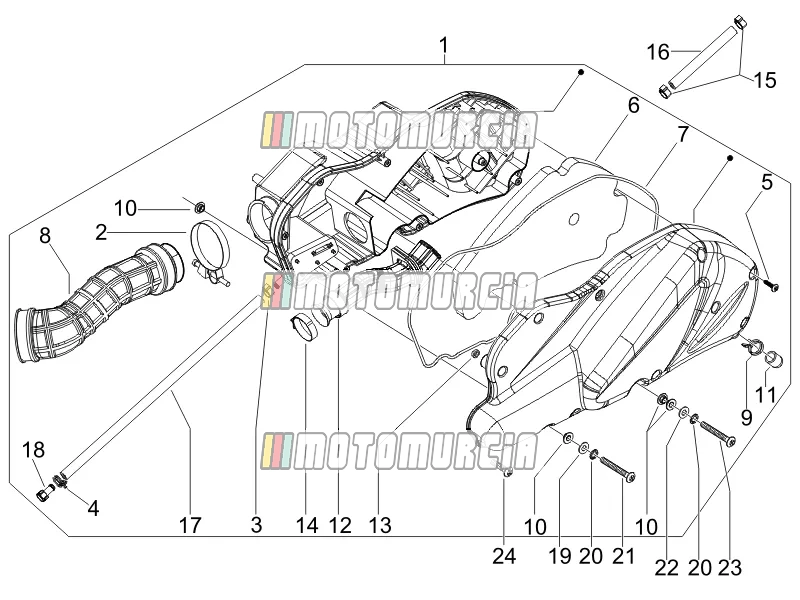

Exploded view — Air Filter

Products

1 Air filter box Available 873151

•

  Air Filter complete Piaggio Group · 873151 Available

  € 255,14

  Add to cart

2 Clamp Available 260918

•

  Clamp Piaggio Group · 260918 Available

  € 5,13

  Add to cart

3 Clamp Available CM001913

•

  Hose Clamp Piaggio Group · CM001913 Available

  € 1,88

  Add to cart

4 5 - Clamp Available CM002908

•

  Clamping Spring Piaggio Group · CM002908 Available

  € 1,48

  Add to cart

5 Screw Available 258146

•

  Thread Screw Piaggio Group · 258146 · Quantity needed: 9 Available

  € 0,99

  Add to cart

6 Air filter Available 8292580P

•

  Air Filter Insert Premium Piaggio Group · 8292580P Available

  € 12,15

  Add to cart

7 Gasket Backorder 833917

•

  Gasket Piaggio Group · 833917 Backorder

  € 12,78

  Add to cart
•

  Gasket Piaggio Group · 829259 Available

  € 13,09

  Add to cart

8 Air intake hose Available 829543

•

  Intake Manifold Piaggio Group · 829543 Available

  € 66,38

  Add to cart

9 Clamp Available CM002910

•

  Clamping Spring Piaggio Group · CM002910 Available

  € 1,29

  Add to cart

10 Spacer Available 830056

•

  Sleeve Piaggio Group · 830056 · Quantity needed: 4 Available

  € 1,48

  Add to cart

11 Cap Available 827831

•

  Cap, transparent Piaggio Group · 827831 Available

  € 5,74

  Add to cart

12 Air bellow Backorder 849589

•

  Intake Boot Piaggio Group · 849589 Backorder

  € 51,49

  Add to cart

13 Spacer Available 965502

•

  Spacer disc Piaggio Group · 965502 Available

  € 4,09

  Add to cart

14 Clamp Available CM001926

•

  Clamp Piaggio Group · CM001926 Available

  € 3,93

  Add to cart

15 Clamp Available CM001907

•

  Hose Clamp Piaggio Group · CM001907 · Quantity needed: 2 Available

  € 2,19

  Add to cart

16 Oil breather pipe Available 840743

•

  Breather Pipe Piaggio Group · 840743 Available

  € 10,08

  Add to cart

17 Level pipe Available 1R000162

•

  Pipe, length: 5m Piaggio Group · 1R000162 Available

  € 86,55

  Add to cart

18 Cover Available 833965

•

  Plug Piaggio Group · 833965 Available

  € 25,51

  Add to cart

19 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 Available

  € 1,84

  Add to cart

20 Washer Available 012533

•

  Washer 6,6x11 mm Piaggio Group · 012533 · Quantity needed: 2 Available

  € 1,45

  Add to cart

21 Screw Available 015761

•

  Screw M6x30 Piaggio Group · 015761 Available

  € 0,99

  Add to cart

22 Washer Available 016670

•

  Washer 4,5x12x1 mm Piaggio Group · 016670 Available

  € 1,60

  Add to cart

23 Screw Available 018640

•

  Screw M6x50 Piaggio Group · 018640 Available

  € 0,99

  Add to cart
