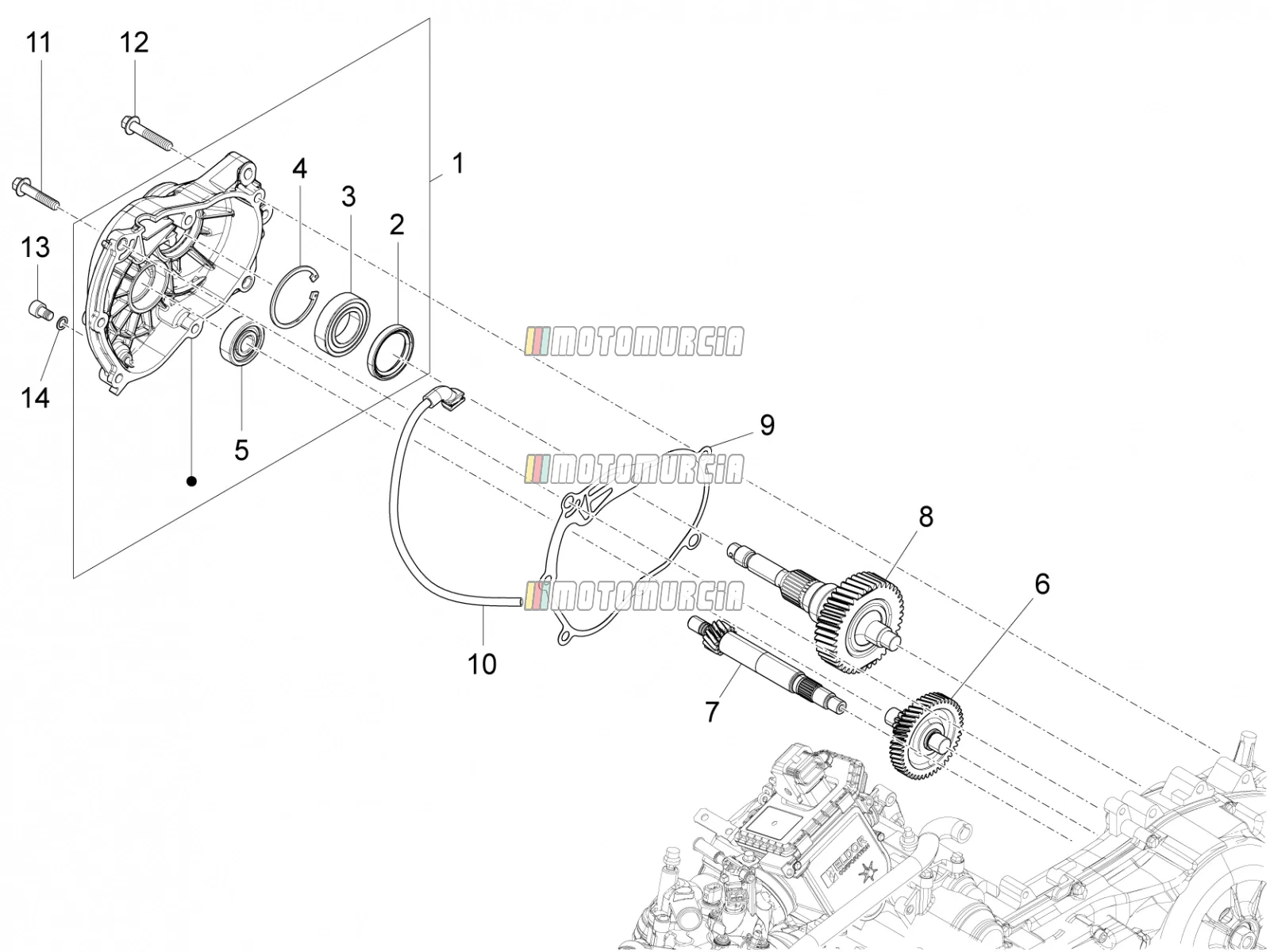

Exploded view — Reduction Unit

‹ Back to model

Piaggio X10 125 4V I.E. 2012

Piaggio X10 125 4V I.E. 2012

Reduction Unit

Products

1 Side cover 8481875 No longer available

8481875 Side cover
No longer available

2 Oil seal Available 83082R

Shaft Seal 38x50x7 mm Piaggio Group · 83082R Available

€ 6,70

3 Radial bearing 30x55x13 Available 1A005376R

Radial bearing 6006 2RS1 C3 GJN, 30x55x13 mm Piaggio Group · 1A005376R Available

€ 15,37

4 Seeger Available 829206

Circlip Piaggio Group · 829206 Available

€ 1,59

5 Bearing Available 83018R

Radial bearing TM6302Y, 15x42x13 mm Piaggio Group · 83018R Available

€ 11,14

6 Transmission shaft Available 8753065

Primary Shaft Piaggio Group · 8753065 Available

€ 85,91

7 Driven pulley shaft Z=14 Available 8738755

Input Shaft Number of Teeth: 14 Piaggio Group · 8738755 Available

€ 249,08

8 Rear wheel axle Available B0168945

Wheel Axle Piaggio Group · B0168945 Available

€ 430,92

9 Gasket Available 847931

Gasket Piaggio Group · 847931 Available

€ 8,95

10 Reducer breather pipe Available CM162202

Breather Pipe Piaggio Group · CM162202 Available

€ 21,97

11 Screw Available B016806

Flanged Screw M8x40 Piaggio Group · B016806 Available

€ 1,45

12 5 - Screw Available B016805

Flanged Screw M8x45 Piaggio Group · B016805 · Quantity needed: 6 Available

€ 1,48

13 Screw Available 269755

Screw M8x12 Piaggio Group · 269755 Available

€ 1,59

14 Washer Available 485703

Washer 8,2x12x1 mm Piaggio Group · 485703 Available

€ 1,25
