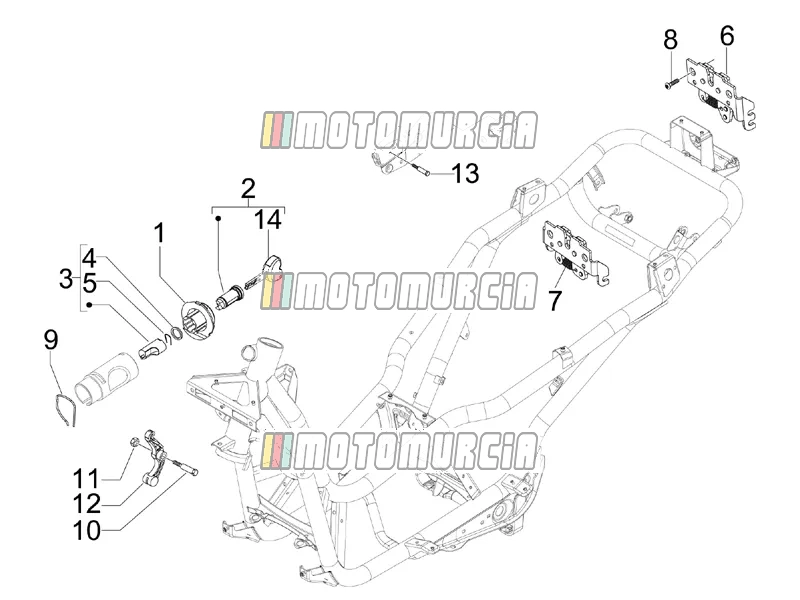

Exploded view — Locks

Products

1 Lock body Available 1B002607

•

  Lock Housing Piaggio Group · 1B002607 Available

  € 8,65

  Add to cart

2 CYLINDER AND KEYS FOR LOCK 654373 No longer available

• 654373 CYLINDER AND KEYS FOR LOCK
  No longer available

3 Complete lock block Available 1B006291

•

  Lock Bolt Piaggio Group · 1B006291 Available

  € 33,92

  Add to cart
•

  Lock Bolt Piaggio Group · 577816 Available

  € 41,82

  Add to cart

4 Flat washer Available 298594

•

  Washer Piaggio Group · 298594 Available

  € 1,80

  Add to cart

5 Cylinder retainer spring Available 298838

•

  Spring Piaggio Group · 298838 Available

  € 2,26

  Add to cart

6 Saddle lock Available CM023701

•

  Seat Lock Piaggio Group · CM023701 Available

  € 36,09

  Add to cart

7 Saddle/flap tightening Available CM023704

•

  Lock Mounting Piaggio Group · CM023704 Available

  € 28,29

  Add to cart

8 Screw Available 259348

•

  Oval Head Screw Piaggio Group · 259348 · Quantity needed: 2 Available

  € 1,08

  Add to cart

9 Spring Available 253937

•

  Wire Tensioning Spring Piaggio Group · 253937 Available

  € 2,77

  Add to cart

10 Screw Available 299972

•

  Screw M4 Piaggio Group · 299972 Available

  € 1,43

  Add to cart

11 Nut Available 577620

•

  Standard nut Piaggio Group · 577620 Available

  € 1,26

  Add to cart

12 Pawl Available 621162

•

  Lever Piaggio Group · 621162 Available

  € 2,37

  Add to cart

13 Screw Available 272836

•

  Screw M6x16 Piaggio Group · 272836 Available

  € 1,39

  Add to cart

14 Key blank (Piaggio) Available 299602

•

  Key Blank Piaggio Group · 299602 Available

  € 10,94

  Add to cart
