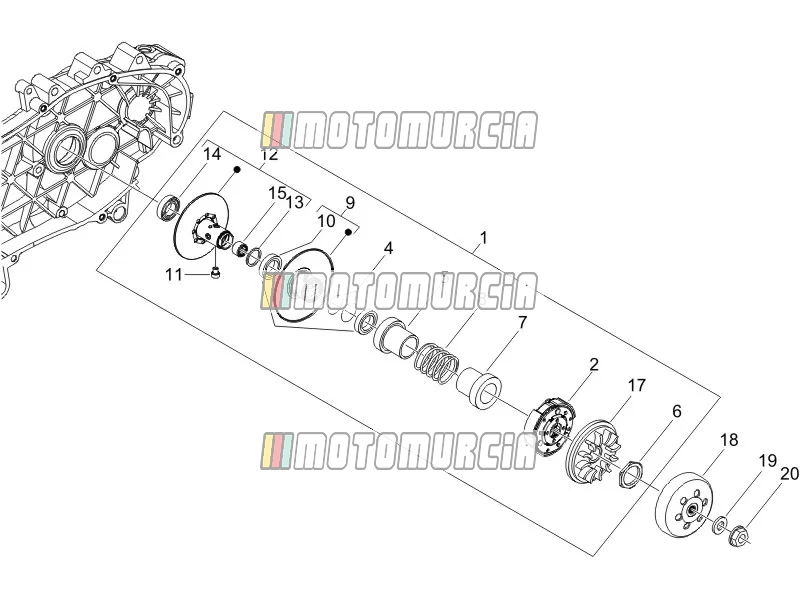

Exploded view — Driven Pulley

‹ Back to model
Piaggio X8 125 Premium 2007 Piaggio X8 125 Premium 2007
Driven Pulley

Products

1 Clutch driven pulley assy. Available CM162403
  • Pulley rear Piaggio Group · CM162403 Available
    € 276,90
2 Clutch Available CM161202
  • Clutch Shoes Piaggio Group · CM161202 Available
    € 94,95
4 O-Ring Available 430585
  • Oil seal Piaggio Group · 430585 · Quantity needed: 2 Available
    € 1,32
5 Cup Available 4310935
  • Spring Mount Piaggio Group · 4310935 Available
    € 36,24
6 Clutch nut Available 433232
  • Standard nut Piaggio Group · 433232 Available
    € 14,90
7 Clutch side cap Available 487936
  • Spring Mount Piaggio Group · 487936 Available
    € 9,79
8 Spring Available 872877
9 Adjustable pulley, half 827499 No longer available
  • 827499 Adjustable pulley, half
    No longer available
  • Pulley halves Piaggio Group · 879002 Available
    € 81,88
10 Oil seal Available 431089
  • Oil seal Piaggio Group · 431089 · Quantity needed: 2 Available
    € 9,66
11 Guide pin L=12,5 Available 828717
  • Pin length: 13mm Piaggio Group · 828717 · Quantity needed: 4 Available
    € 2,09
12 Fixed driven half pulley Available 830580
  • Pulley halves Piaggio Group · 830580 Available
    € 106,17
13 Gasket ring Available 483226
  • Snap-in Ring Piaggio Group · 483226 Available
    € 2,18
14 Bearing Available 82753R
15 Needle bearing Available 82518R
17 Fan Available 482305
18 Clutch bell Available 8440494
  • Clutch Case Piaggio Group · 8440494 Available
    € 79,10
19 Washer (22x12,1x19) Available 274246
20 Nut Available 486324
