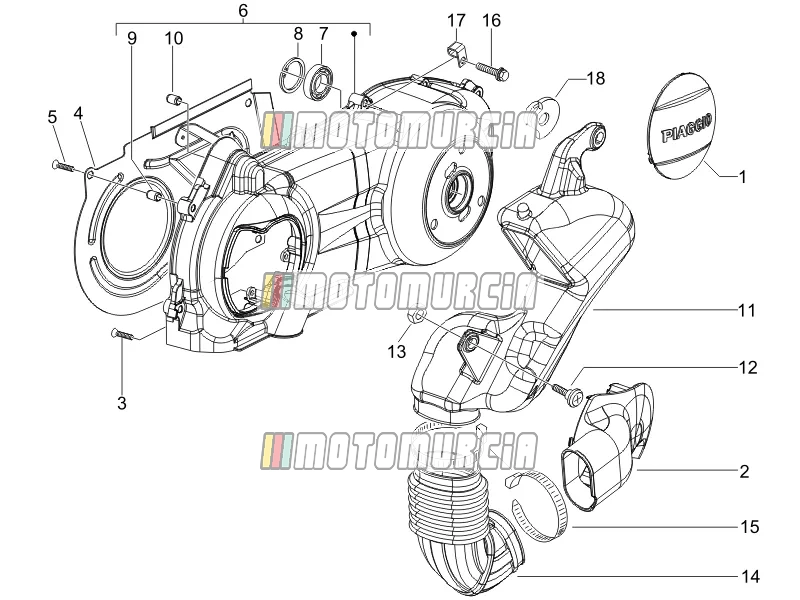

Exploded view — Crankcase Cover - Crankcase Cooling

Products

1 Plug Available CM155110

•

  Lid Piaggio Group · CM155110 Available · Shipped in 3–5 working days

  € 8,55

  Add to cart

2 Belt cooling cover Available 840959

•

  Lid Piaggio Group · 840959 Available · Shipped in 3–5 working days

  € 7,62

  Add to cart

3 Screw Available 270793

• • No ABS


  Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

4 Air deflector Available 873682

• • 125 cc version


  Air Guide Plate Piaggio Group · 873682 Available · Shipped in 3–5 working days

  € 17,17

  Add to cart

5 Screw Available 430264

•

  Oval Head Screw M5x10 Piaggio Group · 430264 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

6 Transmission cover cpl. Available 8413805

•

  Housing cover Piaggio Group · 8413805 Available · Shipped in 3–5 working days

  € 119,84

  Add to cart

7 Bearing Available 4789853

•

  Radial bearing 15x35x11 mm Piaggio Group · 4789853 Available · Shipped in 3–5 working days

  € 5,87

  Add to cart

8 Seeger Available 006635

• • ABS version
  • No ABS version


  Snap-in Ring Piaggio Group · 006635 Available · Shipped in 3–5 working days

  € 1,84

  Add to cart

9 Dowel pin Backorder B015956

•

  Adapter Sleeve 9,5x15 Piaggio Group · B015956 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

  € 1,32

  Add to cart

10 Bush Ø8xØ12x8 Available 431860

•

  Bronze Bushes 8x12x8 Piaggio Group · 431860 Available · Shipped in 3–5 working days

  € 1,65

  Add to cart

11 Pipe 621257 No longer available

• 621257 Pipe
  No longer available

12 Screw (M6x22) Available CM179302

• • ABS version
  • No ABS version
  • Country: Indonesia


  Screw M6x22 Piaggio Group · CM179302 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

13 Nut Available 288245

• • Taiwan version


  Collar nut M6 Piaggio Group · 288245 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

14 Bellows Available 621297

•

  Intake Manifold Piaggio Group · 621297 Available · Shipped in 3–5 working days

  € 13,85

  Add to cart

15 Hose clamp Available 257134

• • Taiwan
  • iGET version


  Cable Ties length: 27,7cm Piaggio Group · 257134 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

16 Screw Available B016792

• • Touring version


  Flanged Screw M6x30 Piaggio Group · B016792 · Quantity needed: 10 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

17 4 - Hose clamp Available 844964

•

  Clamp Piaggio Group · 844964 Available · Shipped in 3–5 working days

  € 2,27

  Add to cart

18 3 - Retainer buffer Available 871458

• • iGET version


  Buffer Piaggio Group · 871458 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 1,89

  Add to cart
