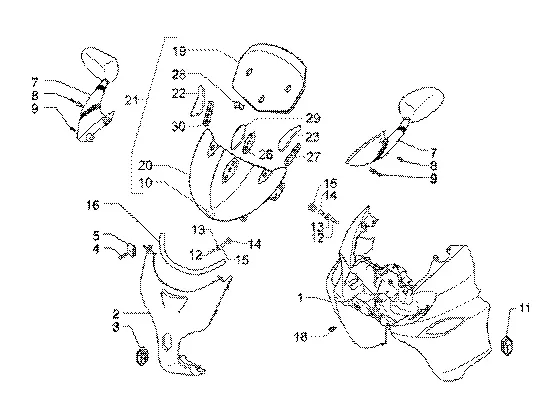

Exploded view — Shield-windscreen

Products

1 Shield 57556150V3 No longer available

• 57556150V3 Shield
  No longer available
• 57556150N3 Front fairing
  No longer available
• 57556150R8 Front fairing
  No longer available
•

  Front Shield Piaggio Group · 5755615 Available

  € 296,95

  Add to cart
• 57556150A7 Front fairing
  No longer available
• 57556150E2 Shield
  No longer available
• 57556150D8 Shield
  No longer available
• 5755615090 Front fairing
  No longer available
•

  Front Shield, blue, Suffix: D1_blue cobalt 251 Piaggio Group · 57556150D1 Available

  € 310,74

  Add to cart
• 5755615060 Shield
  No longer available

2 Front rim Backorder 57556350A7

•

  Cover, silver, Suffix: A7_silver platinum 686 Piaggio Group · 57556350A7 Backorder

  € 82,98

  Add to cart
•

  Frame Piaggio Group · 5755635 Backorder

  € 51,06

  Add to cart
• 57556350E2 Frame
  No longer available
• 57556350R8 Front rim
  No longer available
• 5755635060 Frame
  No longer available
• 57556350D8 Frame
  No longer available
• 57556350N3 Front rim
  No longer available
• 57556350D1 Front rim
  No longer available
• 57556350G9 Front rim
  No longer available
•

  Cover, black, Suffix: 90_black shiny 094 Piaggio Group · 5755635090 Available

  € 187,33

  Add to cart

3 Emblem - Decal (Piaggio - 32 mm - self-adhesive) Available 574771

•

  Emblem, motive: Piaggio, self-adhesive Piaggio Group · 574771 Available

  € 2,54

  Add to cart

4 Screw (4,2x19) Available 258249

•

  Sheet Metal Screw Piaggio Group · 258249 · Quantity needed: 6 Available

  € 0,99

  Add to cart

5 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 · Quantity needed: 7 Available

  € 0,99

  Add to cart

7 Mirror 583381 No longer available

• 583381 Mirror
  No longer available
• 583379 Mirror
  No longer available

9 Screw Available 272836

•

  Screw M6x16 Piaggio Group · 272836 · Quantity needed: 2 Available

  € 1,39

  Add to cart

10 Emblem - Decal 574399000N No longer available

• 574399000N Emblem - Decal
  No longer available

12 Screw Available 271891

•

  Screw M6x30 Piaggio Group · 271891 · Quantity needed: 2 Available

  € 1,59

  Add to cart

13 Washer d6,2x20x1 Available 013092

•

  Washer 6,2x20x1 mm Piaggio Group · 013092 · Quantity needed: 4 Available

  € 1,26

  Add to cart

14 Spacer Available 273288

•

  Spacer Piaggio Group · 273288 · Quantity needed: 4 Available

  € 2,18

  Add to cart

15 Cylindrical cable grommet Available 576565

•

  Cable Guide Piaggio Group · 576565 · Quantity needed: 6 Available

  € 1,32

  Add to cart
•

  Buffer Piaggio Group · 351782 · Quantity needed: 6 Available

  € 2,67

  Add to cart

16 Windshield weather strip CM006001 No longer available

• CM006001 Windshield weather strip
  No longer available

18 Screw (M6x16) Available 575249

•

  Screw M6 Piaggio Group · 575249 Available

  € 0,99

  Add to cart

19 Upper windscreen 577102 No longer available

• 577102 Upper windscreen
  No longer available

20 Lower windscreen 577265 No longer available

• 577265 Lower windscreen
  No longer available

21 Kit Windscreen 577266 No longer available

• 577266 Kit Windscreen
  No longer available

22 Strip gasket Available 935119

•

  Mounting kit for windscreen Piaggio Group · 935119 Available

  € 203,21

  Add to cart

23 Strip gasket Available 935119

•

  Mounting kit for windscreen Piaggio Group · 935119 Available

  € 203,21

  Add to cart

26 Strip gasket Available 935119

•

  Mounting kit for windscreen Piaggio Group · 935119 Available

  € 203,21

  Add to cart

27 Strip gasket Available 935119

•

  Mounting kit for windscreen Piaggio Group · 935119 Available

  € 203,21

  Add to cart

28 Windshield stud 621940 No longer available

• 621940 Windshield stud Quantity needed: 3
  No longer available

29 Strip gasket Available 935119

•

  Mounting kit for windscreen Piaggio Group · 935119 Available

  € 203,21

  Add to cart

30 Strip gasket Available 935119

•

  Mounting kit for windscreen Piaggio Group · 935119 Available

  € 203,21

  Add to cart
