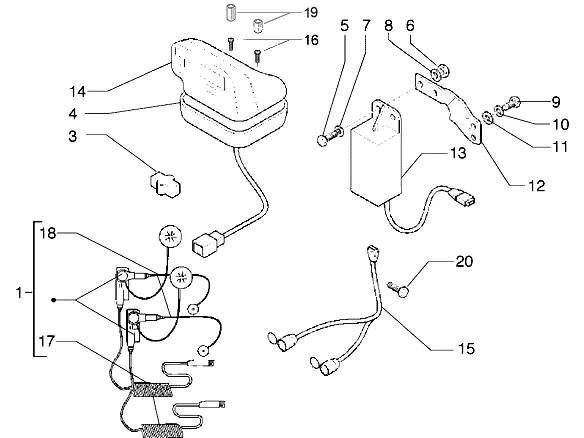

Exploded view — Intercom-display

Products

1 Earphones 583770 No longer available

• 583770 Earphones Quantity needed: 2
  No longer available
• 583145 Interphone headset
  No longer available

3 Spring plate 582291 No longer available

• 582291 Spring plate
  No longer available

4 Bracket Available 582636

•

  Bracket Piaggio Group · 582636 Available

  € 15,16

  Add to cart

5 Screw Available 015558

•

  Screw M16x16 Piaggio Group · 015558 · Quantity needed: 2 Available

  € 1,45

  Add to cart

6 Nut Available 020106

•

  Standard nut M6 Piaggio Group · 020106 · Quantity needed: 2 Available

  € 1,84

  Add to cart

7 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 · Quantity needed: 2 Available

  € 1,84

  Add to cart

8 Washer Available 016406

•

  Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 2 Available

  € 1,79

  Add to cart

9 Screw Available 1A003109

•

  Screw M5x16 Piaggio Group · 1A003109 · Quantity needed: 2 Available

  € 1,45

  Add to cart

10 Washer (spring) Available 016405

•

  Spring Washer Piaggio Group · 016405 · Quantity needed: 2 Available

  € 1,84

  Add to cart

11 Washer Available 003055

•

  Washer 5,4x10x0,8 mm Piaggio Group · 003055 · Quantity needed: 2 Available

  € 1,88

  Add to cart

12 Bracket 582289 No longer available

• 582289 Bracket
  No longer available

13 Interphone power unit 582050 No longer available

• 582050 Interphone power unit
  No longer available

14 Display Backorder 584832

•

  Display for intercom Piaggio Group · 584832 Backorder

  € 181,50

  Add to cart

15 Interphone harness 577559 No longer available

• 577559 Interphone harness Quantity needed: 2
  No longer available
•

  Interphone cable Piaggio Group · 582288 Backorder

  € 15,13

  Add to cart

16 Screw Available 582637

•

  Screw Piaggio Group · 582637 · Quantity needed: 2 Available

  € 1,54

  Add to cart

17 Wire 582508 No longer available

• 582508 Wire Quantity needed: 2
  No longer available
•

  Cable Piaggio Group · 583771 · Quantity needed: 2 Available

  € 79,23

  Add to cart

18 Guard 582519 No longer available

• 582519 Guard Quantity needed: 2
  No longer available

19 Plug (13 cm) 583192 No longer available

• 583192 Plug (13 cm) Quantity needed: 2
  No longer available
• 583193 Plug (17 cm) Quantity needed: 2
  No longer available

20 Screw Available 297498

•

  Sheet Metal Screw Piaggio Group · 297498 · Quantity needed: 3 Available

  € 0,99

  Add to cart
